Extension device set Hydraulix 402 for Hydraulix 200/300 Workstation from switching hydraulics

Extension device set Hydraulix 402 for Hydraulix 200/300 Workstation from switching hydraulics
First steps according to switching hydraulics

Manual Operation (according to BIBB,A-H)
Item No.: 99840
Add to wish list

We offer corresponding extension device sets for a cost-effective addition to learning topics. Starting from one set of equipment, the next learning topic can be reached with an extension equipment set.

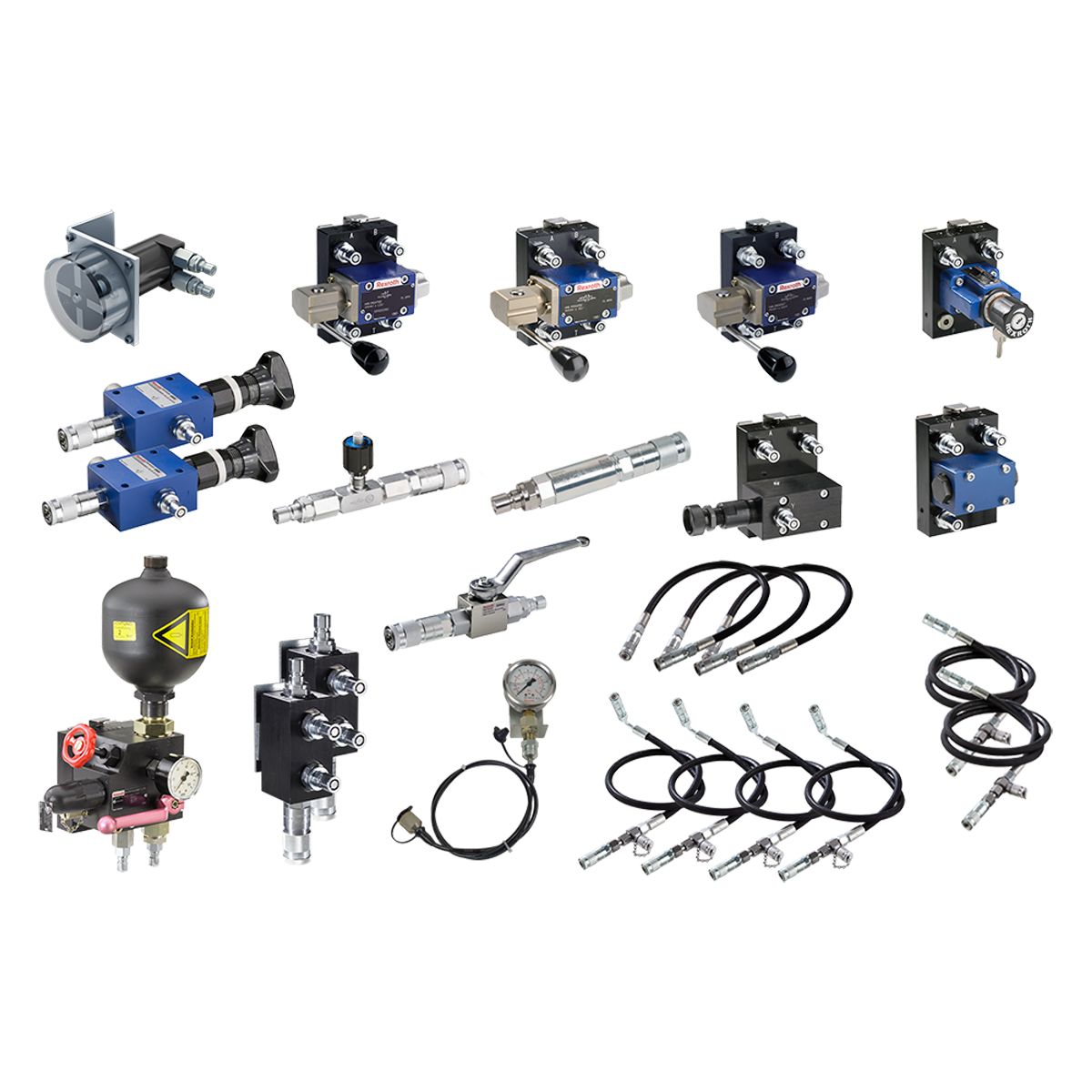

  • 1x Planetary motor
  • 1x 4/2-way valve 4WMM6C5X
  • 1x 4/3-way valve 4WMM6J5X
  • 1x 4/3-Weather fan 4WMM6E5X
  • 2x Pressure relief valve DBDH6G1X
  • 1x Pilot operated pressure relief valve DB6K1-4X/50
  • 1x 2-way flow control valve 2FRM6B36-3X
  • 1x Throttle valve DV06-1-1X/V
  • 1x Non-return valve S6A05-1X
  • 1x Non-return valve hydraulic pilot operated SV 6 PB1-6X
  • 1x Memory module
  • 2x Hydraulic distributor 4-fold
  • 1x Shut-off valve
  • 1x Pressure gauge 0-100 bar with measuring hose
  • 3x Hose line 630 mm
  • 4x Hose line 1000 mm with 90° fitting and mini-measurement connection
  • 2x Hose line 1500 mm with Minimess connection

Additionally Required
