Electrical device set Hydraulix 504 for Hydraulix 300 Workstation

Electrical device set Hydraulix 504 for Hydraulix 300 Workstation
Switching hydraulics - Electrical Operation (according to BIBB, A-H), with I/O-module

Item No.: 99807
Add to wish list

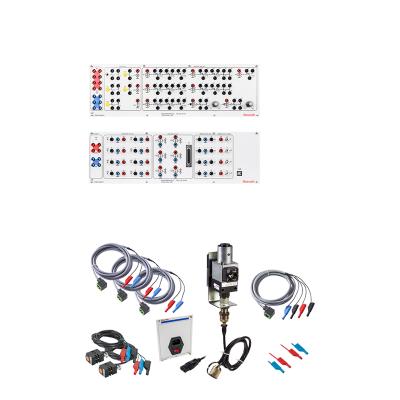

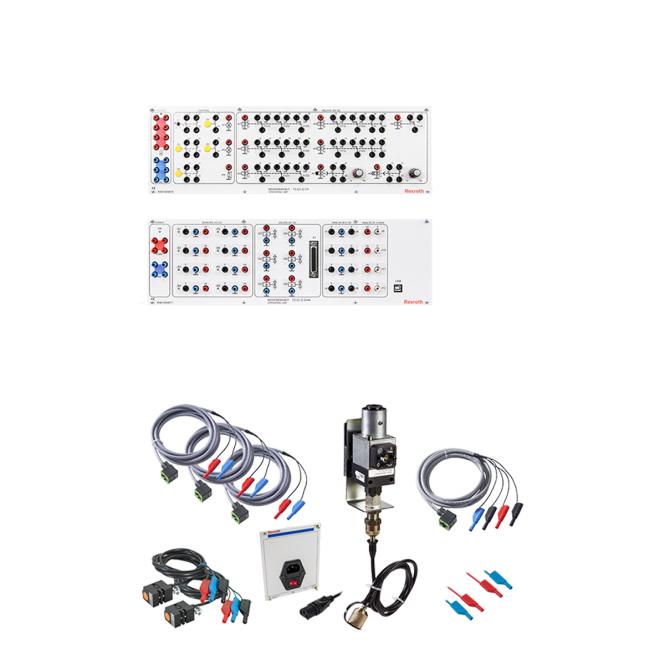

This device set contains all the necessary electrical components for the BIBB exercises A-H and Z1-Z3. The electrical functions switch, pushbutton, relay and display are combined in a control panel with 19˝ technology. This equipment set is required to carry out the exercises from the exercise book „Switching hydraulics – electrical operation (according to BIBB)“ on a Hydraulix 300 workstation. This set also contains an I/O module in 19˝ technology, which can be used to connect sensors and valves. A simulation programme can be connected to the hardware via a USB interface.

  • 1x Operating unit 19˝ variant - BIBB module
  • 1x Operating unit 19˝ variant - I/O module
  • 1x Adapter plate 19˝ variant - 1 switch, IEC plug, mains connection cable 0.5 m
  • 1x Electrical pressure switch
  • 2x Inductive proximity switch
  • 3x Magnetic cable with form A plug, black, with LED, with protective circuit
  • 1x Test lead set small

Additionally Required
