Electrical device set Hydraulix 502 for Hydraulix 200 Workstation

Electrical device set Hydraulix 502 for Hydraulix 200 Workstation
Switching hydraulics - Electric Operation (according to BIBB, A-H), with I/O-module

Item No.: 99821
Add to wish list

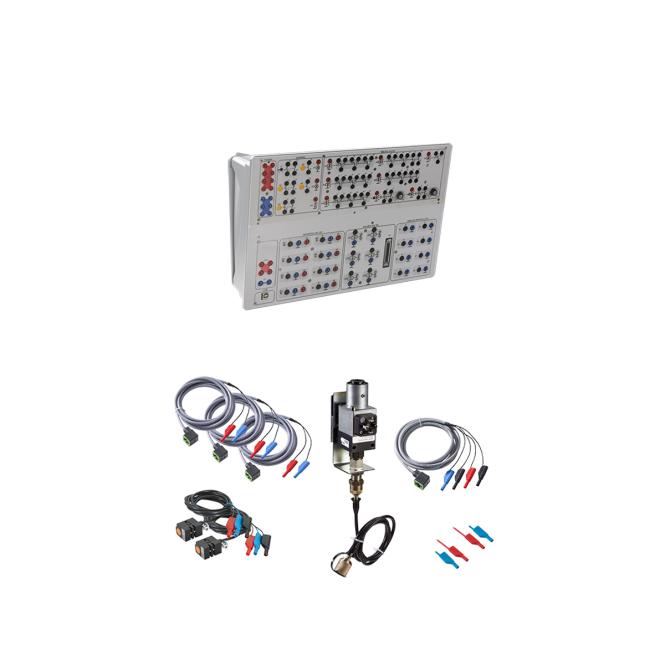

This device set contains all the necessary electrical components for the BIBB exercises A-H and Z1-Z3. The electrical functions switch, button, relay and display are combined in a control unit with plastic housing. This equipment set is required to carry out the exercises from the exercise book „Switching hydraulics - electrical operation (according to BIBB)“ on a Hydraulix 200 workstation. The control unit in this set also contains an I/O module that can be used to connect sensors and valves. A simulation programme can be connected to the hardware via a USB interface.

  • 1x Operating unit housing variant - BIBB module + I/O module
  • 1x Electrical pressure switch
  • 2x Inductive proximity switch
  • 3x Magnetic cable with form A plug, black, with LED, with protective circuit
  • 1x Measuring lead set small

Additionally Required
