Device Set XITE Hydraulix 301 for Hydraulix 300 Workstation

Device Set XITE Hydraulix 301 for Hydraulix 300 Workstation
Continuous valve technology - Proportional hydraulics, complete

Item No.: 99828
Add to wish list

The equipment set is used to teach practical examples of electrohydraulic control technology by means of exercises. Only components that meet industry standards and are specially prepared for use in training are used. The equipment set is coordinated with the exercise book „Continuous valve technology (proportional technology)“. The exercises with the listed components can be carried out on the Hydraulix 300 workstation.

Through logically structured, practical exercises, the trainee should:

  • Physical laws of proportional valves
  • such as pressure difference, opening cross-section and volume flow,
  • familiarise themselves with and apply the legal requirements and safety regulations,
  • use the most important symbols of proportional hydraulics, read circuit diagrams,
  • familiarise themselves with and understand the meaning and mode of operation of setpoint specification, ramp function and signal sequences,
  • practise the adjustment, commissioning and optimisation of an electrohydraulic system,
  • determine characteristic values and derive characteristic curves from them.

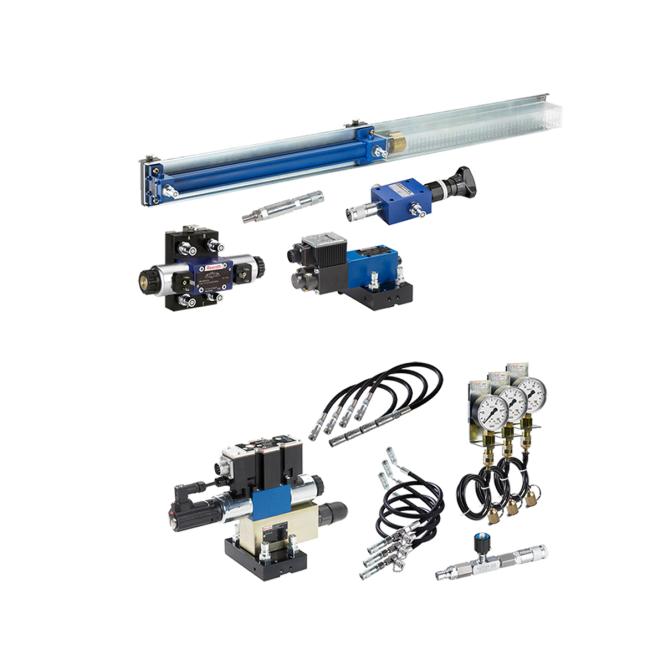

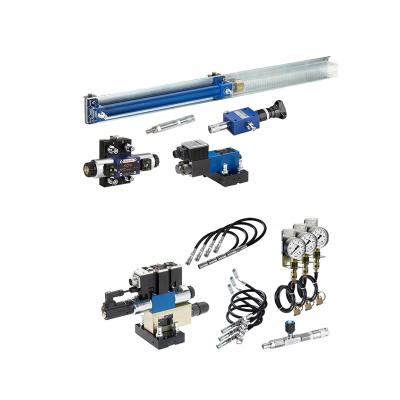

  • 1x Differential cylinder CD70F25/16-400 with protective housing
  • 1x 4/3-way valve 4WE6E6X
  • 1x 4/3 proportional directional control valve 4WREE6E08-2X with int. elec. and load sim.
  • 1x Pressure relief valve DBDH6G1X
  • 1x Prop. pressure relief valve DBEE6-2X/50
  • 1x Throttle check valve DRV06-1-1X/V
  • 1x Non-return valve S6A05-1X
  • 3x Pressure gauge 0-100 bar with measuring hose
  • 4x Hose line 630 mm
  • 3x Hose line 1000 mm with 90° fitting and mini-measurement connection
