Mobile hydraulics - Throttle control

complete
Item No.: 99833
Add to wish list

The equipment set is used to teach practical applications from mobile control technology. Only components that meet industry standards and are specially prepared for use in the training area are used. The equipment set is coordinated with the exercise book „Mobile hydraulics - throttle control 3SM-12“. The exercises with the listed components can be carried out on the Hydraulix 300 workstation.

  • understand the physical laws of hydraulics such as pressure difference, opening cross-section and volume flow,
  • Read specific switching symbols,
  • recognise the function of the throttle control,
  • Components such as 6/3-way valve, load-holding valve, primary and secondary pressure valve,
  • familiarise yourself with hydraulic pilot control,
  • the relationship between control and speed
  • familiarise themselves with the function of the throttle control in parallel operation,
  • work out the function and application of hydraulic control,
  • determine characteristic values and derive characteristic curves from them.

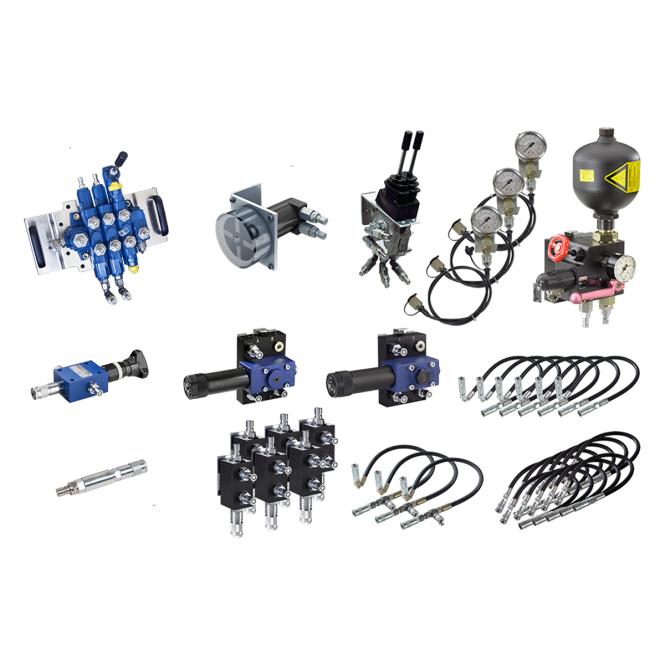

  • 1x Mobile control block throttle control 3 SM12
  • 1x Hydraulic pilot control unit 2 hand levers 2-2TH6
  • 1x Planetary motor
  • 1x Pressure relief valve DBDH6G1X/
  • 1x Pressure reducing valve direct operated DR6DP1-5X
  • 1x Pressure switching valve direct operated DZ6DP1-5X
  • 1x Non-return valve S6A05-1X
  • 1x Memory module
