Device Set Hydraulix 302 for Hydraulix 300 Workstation

Device Set Hydraulix 302 for Hydraulix 300 Workstation
Continuous valve technology - Control hydraulics, complete

Item No.: 99830
Add to wish list

The equipment set is used to teach practical applications of a simple electrohydraulic position control circuit. Only components that meet industry standards and are specially prepared for use in the training area are used. The equipment set is coordinated with the „Analogue position control loop“ exercise book. The exercises with the listed components can be carried out on the Hydraulix 300 workstation.

  • Physical laws of continuous valves
  • such as pressure difference, opening cross-section and volume flow,
  • familiarise themselves with and apply the legal requirements and safety regulations,
  • use the most important symbols of control hydraulics, read circuit diagrams,
  • familiarise themselves with and understand the meaning and mode of operation of setpoint specification, ramp function and signal sequences,
  • practise the adjustment, commissioning and optimisation of an electrohydraulic system,
  • determine characteristic values and derive characteristic curves from them,
  • Recognise the problems and disadvantages of open control,
  • Understand the function and meaning of a controller setting,
  • Recognise the advantages of a regulation,
  • Practise commissioning and optimising an electrohydraulic position control loop with variable loads.

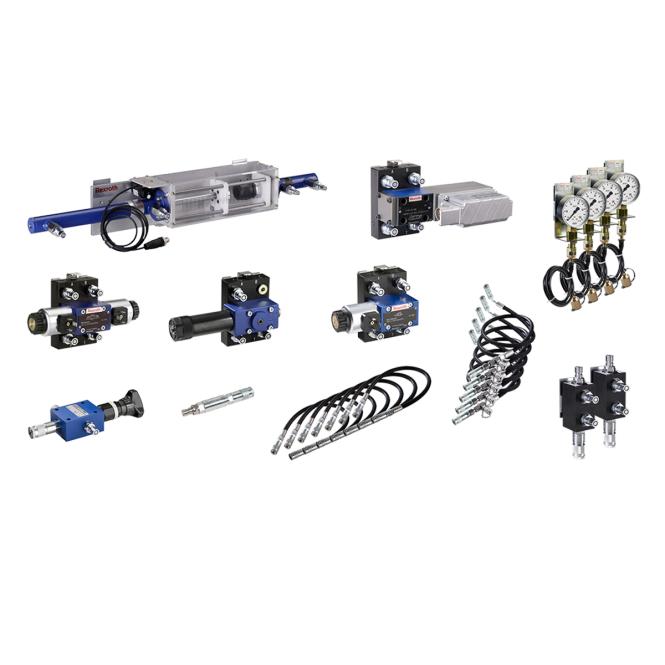

  • 1x Load unit adjustable, for dynamic load simulation
  • 1x 4/4 control valve 4WRPEH6 with integrated electronics
  • 1x 4/2-way valve 4WE6C6X
  • 1x 4/3-way valve 4WE6E6X
  • 1x Pressure relief valve DBDH6G1X
  • 1x Pressure reducing valve direct operated DR6DP1-5X
  • 1x Non-return valve S6A05-1X
  • 2x Hydraulic distributor 4-fold
  • 4x Pressure gauge 0-100 bar with measuring hose
  • 7x Hose line 630 mm R961002474 7 146
  • 5x Hose line 1000 mm with 90° fitting and mini-measurement connection
