Mobile hydraulics - LUDV control unit, complete

Item No.: 99839
Add to wish list

The equipment set is used to teach practical applications from mobile control technology. Only components that meet industry standards and are specially prepared for use in the training area are used. The equipment set is harmonised with the „Mobile hydraulics – LUDV“ exercise book. The exercises with the listed components can be carried out on the Hydraulix 300 workstation.

  • Pressure adjustment and hydraulic pilot control
  • Set consumer quantities with stroke limits
  • Influences due to pipework
  • Influences due to loads
  • Lifting cylinder with alternating direction of force
  • Extension cylinder with external force application
  • Functional principle of a LUDV system

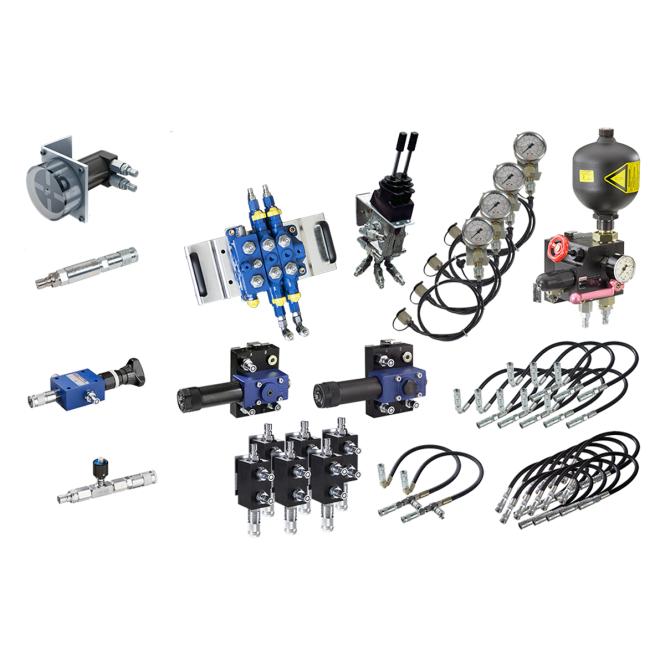

  • 1x Mobile control block LUDV 2SX-12
  • 1x Hydraulic pilot control unit 2 hand levers 2-2TH6
  • 1x Planetary motor
  • 1x Pressure relief valve DBDH6G1X
  • 1x Pressure reducing valve direct operated DR6DP1-5X
  • 1x Pressure switching valve direct operated DZ6DP1-5X
  • 1x Throttle valve DV06-1-1X/V
  • 1x Non-return valve S6A05-1X
  • 1x Memory module
  • 6x Hydraulic distributor 4-fold
  • 4x Pressure gauge 0-100 bar with measuring hose
  • 11x Hose line 630 mm
  • 2x Hose line 700 mm with 90° fitting and mini-measurement connection
  • 8x Hose line 1000 mm with 90° fitting
