Device Set Hydraulix 208

Device Set Hydraulix 208
Mobile hydraulics - load sensing control complete

Item No.: 99834
Add to wish list

The equipment set is used to teach practical applications from mobile control technology. Only components that meet industry standards and are specially prepared for use in the training area are used. The equipment set is coordinated with the exercise book „Mobile Hydraulics - Load Sensing Control 2M4-12“. The exercises with the listed components can be carried out on the Hydraulix 300 workstation.

  • Primary pressure limitation
  • Consumer quantities with stroke limits
  • Load pressure compensation
  • Pressure losses in P line
  • Hydraulic pilot control
  • External power unit
  • Secondary valves
  • Load Sensing Pressure limitation
  • Parallel operation with sufficient flow rate
  • Parallel operation with insufficient flow rate
  • Lifting cylinder with alternating direction of force

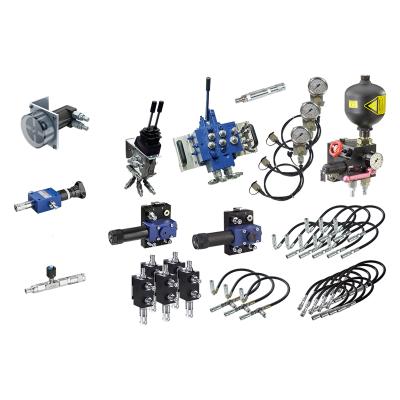

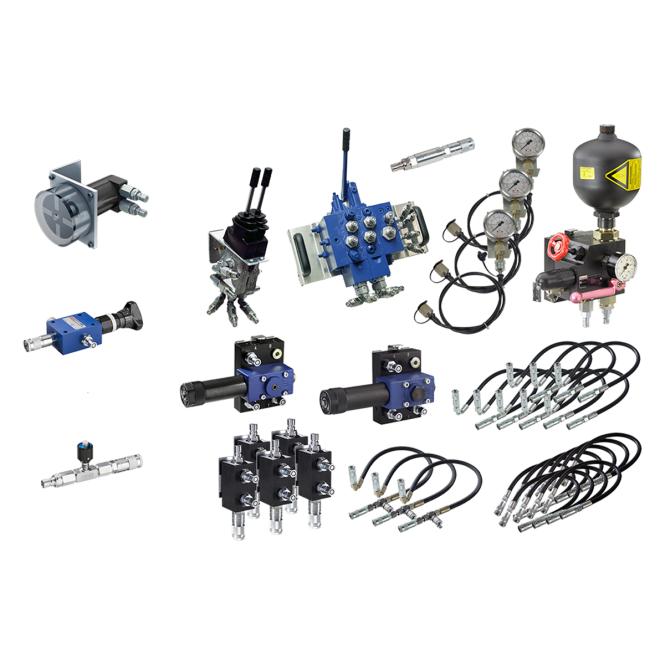

  • 1x Mobile control block Load Sensing 2M4-12
  • 1x Hydraulic pilot control unit 2 hand levers 2-2TH6
  • 1x Planetary motor
  • 1x Pressure relief valve DBDH6G1X/
  • 1x Pressure reducing valve direct operated DR6DP1-5X
  • 1x Pressure switching valve direct operated DZ6DP1-5X
  • 1x Throttle valve DV06-1-1X/V
  • 1x Non-return valve S6A05-1X
  • 1x Memory module
  • 5x Hydraulic distributor 4-fold
  • 3x Pressure gauge 0-100 bar with measuring hose
  • 10x Hose line 630 mm
  • 3x Hose line 700 mm with 90° fitting and mini-measurement connection
  • 8x Hose line 1000 mm with 90° fitting
