This equipment set is used to teach the basics of hydraulics by means of exercises. Only industrial components of nominal size 6 are used, which are specially prepared for use in the training area. The equipment set is coordinated with the exercise book „Switching hydraulics - electrical operation (according to BIBB)“, which covers the BIBB exercises A-H and Z1-Z3. The exercises with the listed components can be carried out both on the Hydraulix 200 workstation and on the Hydraulix 300 workstation.
Through logically structured, practical exercises, the trainee should:
- understand the physical laws of hydraulics such as pressure difference, opening cross-section and volume flow,
- familiarise themselves with and apply the legal requirements and safety regulations,
- understand the function of basic hydraulic circuits,
- recognise the typical behaviour of hydraulic components in different operating situations,
- determine characteristic values and derive characteristic curves from them.

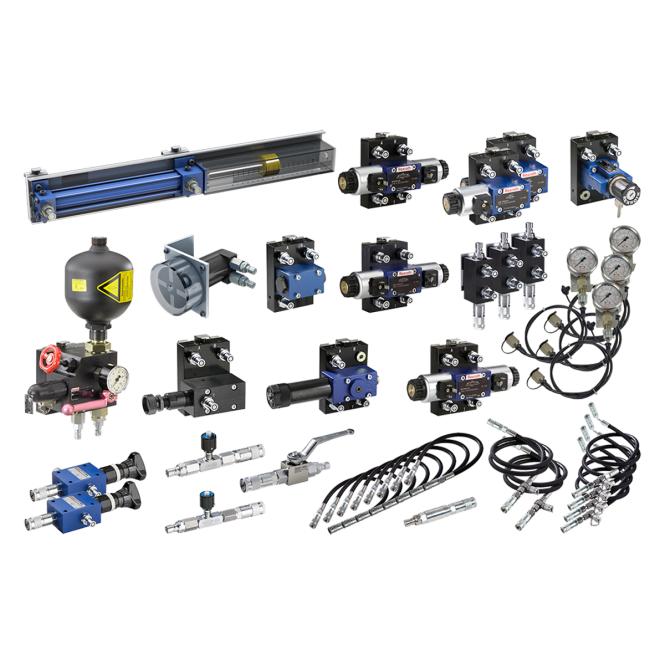

- 1x Differential cylinder CD70F25/16-200 with protective housing and connection option for load unit in Hydraulix 200 workstation
- 1x Planetary motor
- 1x 4/2-way valve 4WMM6C5X
- 1x 4/3-way valve 4WMM6J5X
- 1x 4/3-Weather fan 4WMM6E5X
- 2x Pressure relief valve DBDH6G1X
- 1x Pilot operated pressure relief valve DB6K1-4X/50
- 1x Pressure reducing valve direct operated DR6DP1-5X
- 1x 2-way flow control valve 2FRM6B36-3X
- 1x Throttle valve DV06-1-1X/V
- 1x Throttle check valve DRV06-1-1X/V
- 1x Non-return valve S6A05-1X
- 1x Non-return valve hydraulic pilot operated SV 6 PB1-6X
- 1x Memory module
- 3x Hydraulic distributor 4-fold
- 1x Shut-off valve
- 4x Pressure gauge 0-100 bar with measuring hose
- 8x Hose line 630 mm
- 4x Hose line 1000 mm with 90° fitting and mini-measurement connection
- 2x Hose line 1500 mm with Minimess connection
