Device Set Hydraulix 101

Device Set Hydraulix 101
for Hydraulix 200/300 Workstation

Switching hydraulics - first steps, complete
Item No.: 95706
Add to wish list

This device Set is used to teach the basics of hydraulics by means of exercises. Only industrial components of nominal size 6 are used, which are specially prepared for use in the training area. The equipment set is coordinated with the exercise book „Switching hydraulics – first steps“, which covers the BIBB exercises A-E3. The exercises with the listed components can be carried out both on the Hydraulix 200 Workstation and on the Hydraulix 300 Workstation.

  • Theoretical basics related to the project exercises
  • Practical introduction to the project exercises (recognising hydraulic components)
  • Commissioning of a hydraulic system
  • Function and design of pressure relief valves, hydraulic cylinders and directional control valves
  • Function of throttle check valves and pressure reducing valves

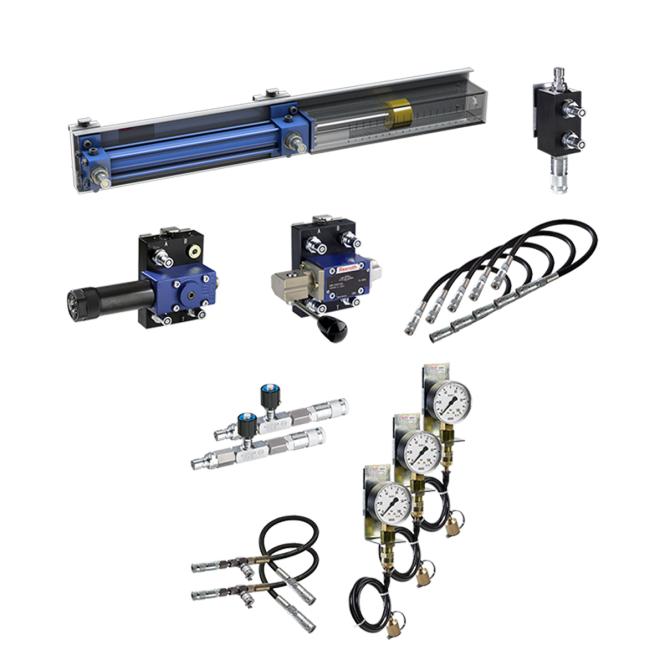

  • 1x differential cylinder CD70F25/16-200 with protective housing and connection option for load unit in workstation WS201
  • 1x 4/3-way valve 4WMM6G5X
  • 1x pressure reducing valve direct operated DR6DP1-5X
  • 2x throttle check valve DRV06-1-1X/V
  • 1x hydraulic distributor 4-fold
  • 3x pressure gauge 0-100 bar with measuring hose
  • 5x hose line 630 mm
  • 2x 630 mm hose line with mini-measurement connection
