Device Set 205 for Hydraulix 300 Workstation

Device Set 205 for Hydraulix 300 Workstation
Mobile Hydraulics - Steering Systems, Advanced Complete

Item No.: 55597
Add to wish list

The equipment set is used to teach practical exercises in mobile control technology. Only components that meet industry standards and are specially prepared for use in training are used. The equipment set is coordinated with the exercise book „Mobile Hydraulics - Hydrostatic Steering Systems“. The exercises with the listed components can be carried out on the Hydraulix 300 workstation.

Note: A stationary 80 kg load unit is required for exercise 8.

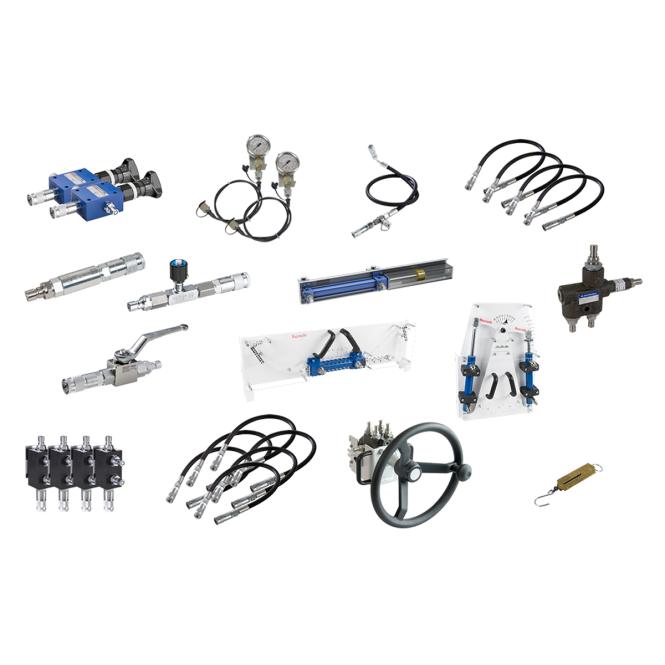

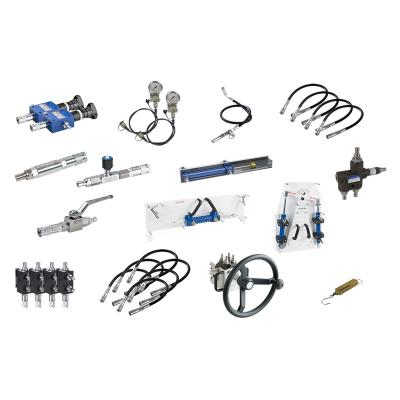

  • 1x Steering unit with steering unit, steering column and steering wheel
  • 2x Pressure relief valve DBDH6G1X/
  • 4x Hydraulic distributor 4-fold
  • 2x Pressure gauge 0 to 100 bar with measuring hose
  • 1x Hose line 1000 mm with 90° fitting and mini-measurement connection
  • 4x Hose line 1000 mm
  • 6x Hose line 630 mm
  • 1x Differential cylinder CD70F25/16-200 with protective housing and connection option for load unit in Hydraulix 200 workstation
  • 1x Shut-off valve
  • 1x Non-return valve S6A05-1X
  • 1x Spring balance, 0 - 12.5 kg
  • 1x Priority valve, 3-way flow control valve in the Closed Centre-Load Sensing version
  • 1x Ackermann steering - functional model with one synchronised cylinder, 2 displays for steering angle (1 per wheel) and steering stroke, protective housing
  • 1x Articulated steering function model with 2 differential cylinders, display for articulation angle and steering stroke, protective housing
