Mobile hydraulics - Basic steering systems

Complete
Item No.: 50495
Add to wish list

The equipment set is used to teach practical exercises in mobile control technology. Only components that meet industry standards and are specially prepared for use in the training area are used. The equipment set is coordinated with exercises 1 to 5 from the exercise book „Mobile Hydraulics - Hydrostatic Steering Systems“. The exercises with the listed components can be carried out on the Hydraulix 300 workstation.

Note: A stationary 80 kg load unit is required for exercise 8.

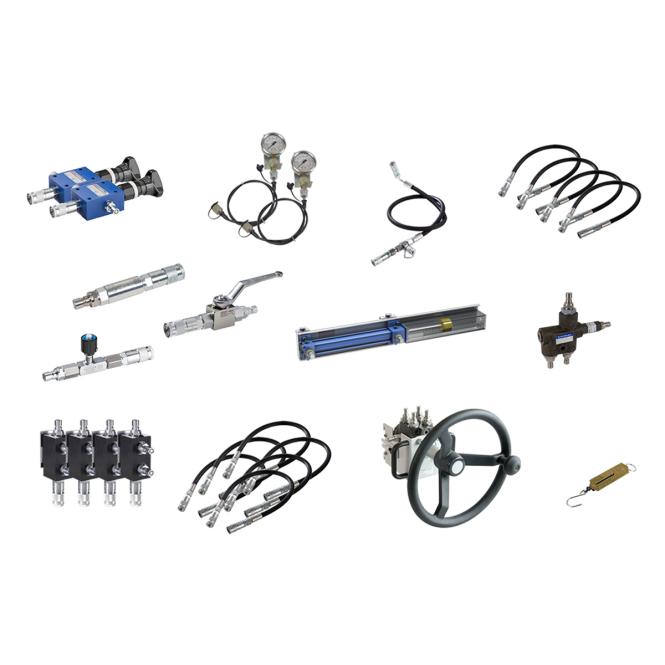

  • 1x Steering unit with steering unit, steering column and steering wheel
  • 2x Pressure relief valve DBDH6G1X/
  • 4x Hydraulic distributor 4-fold
  • 2x Pressure gauge 0 to 100 bar with measuring hose
  • 1x Hose line 1000 mm with 90° fitting and mini-measurement connection
  • 4x Hose line 1000 mm
  • 6x Hose line 630 mm
  • 1x Differential cylinder CD70F25/16-200 with protective housing and connection option for load unit in Hydraulix 200 workstation
  • 1x Shut-off valve
  • 1x Non-return valve S6A05-1X
  • 1x Spring balance, 0 - 12.5 kg
  • 1x Priority valve, 3-way flow control valve in the Closed Centre Load-Sensing version
