BIBB Electropneumatic Extension Kit - SMC
SMC Components + Electric Boxes

This electropneumatics device kit is suitable for electropneumatics exercises in training rooms or workshops with students, trainees, retrainees, technicians, etc.. Based on the pneumatics device kit for BIBB exercises, the components included offer a wide range of options for setting up your own electropneumatic circuits.

The contents of the equipment set correspond to the course of the Federal Institute for Vocational Education and Training BIBB and include all the components required for practical implementation of the course exercises.

All components are based on original industrial components with 4 mm safety laboratory plugs so that the trainees will recognize the components in their later working environment.

The individual components are mounted as complete assemblies on a quick-fix system for grooved plates (grid dimension 25 mm) - Slide-In. This enables safe and fast assembly of the training circuits. All plug-in connections are designed for 4 mm compressed air hoses.

In order to practically implement the required electrical functions in the exercises, all E-boxes are combined in this equipment set as a housing variant. All E-boxes are enclosed in plastic housings with aluminum front panels and have a quick-fastening system for grooved plates. The electrical connections are designed as contact-protected 4 mm safety laboratory sockets.

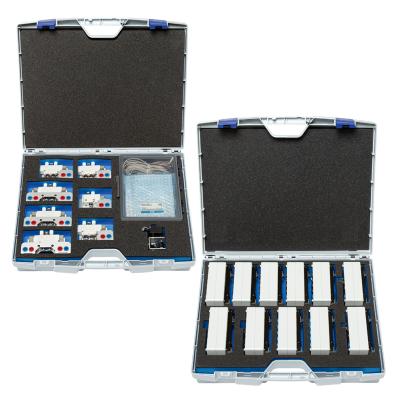

The equipment set is delivered in a sturdy plastic case.

Storage in transport case:

• Handy size
• Clearly arranged for quick access
• Best possible protection of the contents
• Safe storage in the foam padding also enables a quick completeness check
• Foam inserts can be removed and placed in matching drawer cabinets to the workstation systems / laboratory benches.
