This electropneumatics device kit is suitable for electropneumatics exercises in classrooms or workshops with pupils, trainees, retrainees, technicians, etc.... Based on the pneumatics device kit for BIBB exercises, the components included offer a variety of options for building your own electropneumatic circuits. The content of the device kit corresponds to the course of the Federal Institute for Vocational Education and Training BIBB and contains all the components required to implement the exercises of the course in practice.
All components are based on industrial components with 4 mm safety lab plugs. This enables the exercise circuits to be set up safely and quickly. The components are delivered as completely assembled assemblies on a slide-in quick-fix system for grooved plates (grid dimension 25 mm). All plug-in connections are designed for 4 mm compressed air hoses.
- Beginners / Transfer students
- Pupils / Retrainees
- Trainees / Apprentices
- Technicians
For advanced training in the following occupations:
- Industrial mechanic specializing in equipment and precision engineering
- Machine and system technology and production technology
- Construction mechanic specializing in equipment technology
- Mechatronics technician
- Physical principles of pneumatics
- Compressed air generation and distribution
- Compressed air preparation
- Cylinders and directional control valves
- Supply air and exhaust air throttling
- AND/OR elements
- Sequence control with individual valves
- Sequence control with step chains (cycle chains)
- Measurement of voltage and current
- Solenoid valves
- Basic circuit with contacts
- Relays, latching
- Timing relays
- Pneumatic-electric transducers

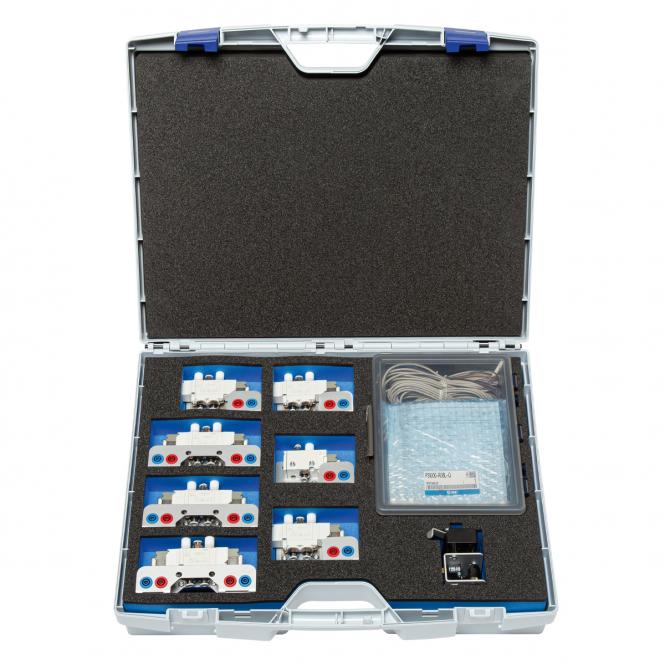

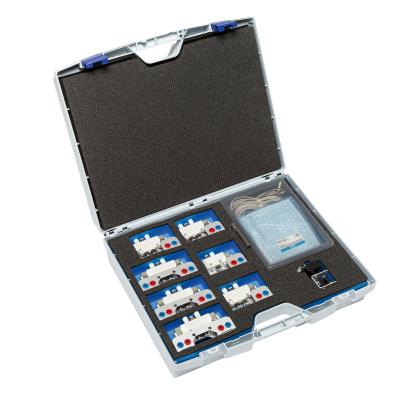

- 1x 3/2-way solenoid valve M5 spring return position
- 3x 5/2 way solenoid valve
- 1x 3/2 way solenoid valve G1/8
- 3x 5/2-way solenoid valve, spring return
- 1x electrical limit switch with sensing roller, 1 change-over contact, 2A
- 1x electrical pressure switch
- 5x electronic signal transmitter (3-wire), with operating indicator and fastening element for rail mounting.
Incl. accessories, in small parts box:
- 6x banana plug red
- 6x banana plug blue
- 5x banana plug black
- 1x slotted screwdriver
- 1x Reducer 4 mm - 6 mm
- 1x T-piece 4 mm
Supplied complete in transport case with foam inserts.
