To purchase the software, you must also purchase a 12-month software maintenance agreement, item no. 54957, after which you will receive an optional offer to extend the software maintenance.
Classrom licence, for 18 workplaces
SinuTrain enables convenient operation of SINUMERIK along with CNC programming on your PC. The software can be adjusted to perfectly suit the axis configurations of various machines. This ensures maximum compatibility between CNC programmes created offline and the machine on the shop floor.
SINUMERIK Operate - the user interface for efficient machine
control.
The new SINUMERIK operator interface has been structured even
more clearly and intuitively. SINUMERIK Operate combines the known HMI-Advanced,
ShopMill and ShopTurn on one consistent, innovative operator and programming
interface. SINUMERIK Operate is clearly structured, can be operated intuitively
and provides numerous modern, powerful functions which allow to combine workstep
and high-level language programming on one operator interface - thus ensuring
fast, efficient and intuitive NC programming and production planning.
ShopTurn & ShopMill
Workstep
programming
ProgramGUIDE
Graphic programming using animated
elements
DIN/ISO & SINUMERIK high-level language
Maximum
freedom of programming
Simple steps for succesful CNC machinig
When setting up a
workpiece, the measurement is vividly and transparently displayed by animated
elements. Complex workpieces can be conveniently manufactured within a short
time in one clamping. Different kinematics can be easily set up.
Updates
- SINUMERIK Booth V4.7 SP3 HF1
- Windows 8.1 and Windows 7 sharing
- Basic version (without valid license)
- SinuTrain Workbench as machine hall
- Several SINUMERIK CNC-SW versions in one SinuTrain interface
- Improved screen usage
- More window mode
Programming, simulation and printing
- DIN/ISO programming with ProgramGUIDE
- ShopMill/ShopTurn work step programming
- Multi-channel programming with ProgramSYNC (only in the full version of SinuTrain)

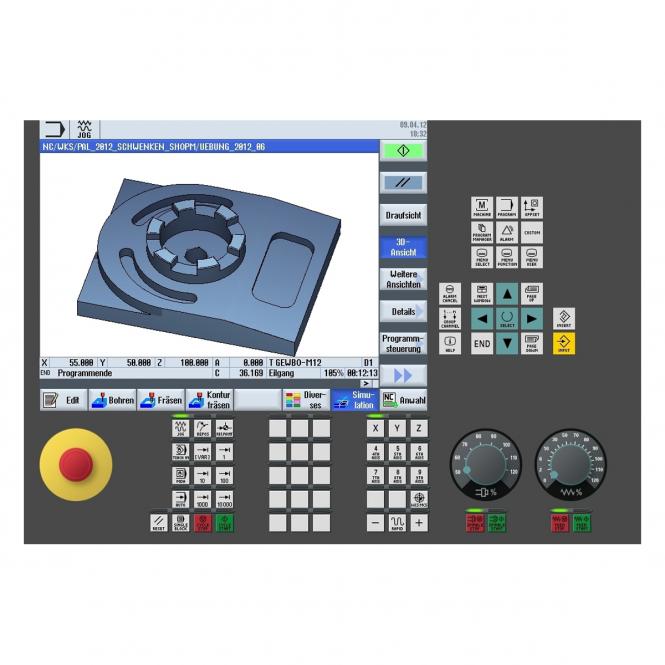

- Complete graphical CNC simulation
- TCP/IP Ethernet networking with machines
- Print function for DIN/ISO and ShopMill/ShopTurn workstep programs
- Integrated CAD reader for importing DXF files
Languages: English, French, Spanish, Italian, Chinese
Delivery form
The SinuTrain software for SINUMERIK Operate is
integrated on a data storage device. The scope of delivery includes a SinuTrain
for SINUMERIK Operate 828D/828D BASIC/840D sl 4.7 SP3 DVD, operating
instructions in German and English, and a USB stick containing the licence
key.
Technical requirements
- Processor 2 GHz
- RAM 4 GB
- Disc capacity approx. 3,3 GB full installation
- Graphics card: DirectX 9 or higher with WDDM 1.0 driver, minimum resolution 800 * 600 pixels
- Mouse, keyboard
- Operating system MS Windows 7 SP1 (32- and 64-Bit | not supported:
Starter,Web Edition and Embedded)
MS Windows 8.1 (32- and 64-Bit | not supported: RT Edition)
MS Windows 10 (64-Bit | not supported: Mobile and Mobile Enterprise) - Adobe Reader®
Hardware
- Processor 2GHz (single core)
- RAM 4 GB
- Storage space approx. 3.2 GB for complete installation
- Graphics card: minimum resolution 640 * 480 pixels
- mouse, keyboard
Operating system
- MS Windows 7 Home Basic, Home Premium, Professional, Ultimate, Enterprise (32- and 64-bit)
- MS Windows 8.1, MS Windows 8.1 Pro, Enterprise (32- and 64-bit)
- MS Windows 10 (64-bit | not supported: Mobile, Mobile Enterprise)
Software
- Adobe Reader® software
User profile
- To install SinuTrain you need administrator rights
The delivery takes place via a link to the software.
The functional scope is activated with the corresponding license key depending on the order. The license key (USB stick) of software 2.6 SP2 is also functional for software 4.5. SinuTrain uses the Automation License Manager (ALM) to protect against unauthorized copying.
Limitations of the Basic version
Use and scope of functions of the various template engines depend on whether you have a license. Without a license, only the Basic version is available to you. For the template machines "DEMO-Lathe" (1-channel 3-axis machine with main spindle and driven tool spindle) and "DEMO-Milling Machine" (1-channel 3-axis machine) you do not need a license. You can, for example, transfer workpieces and part programs to the machine for program simulation and adaptation and then exit the machine for further use on CNC controls.
