SINUMERIK Operate Training Software
The new user interface for efficient machine operation.
The new SINUMERIK user interface is now even clearer and more intuitive. SINUMERIK Operate combines the well-known HMI-Advanced, ShopMill and ShopTurn under one consistent, innovative operating and programming interface.
SINUMERIK Operate is clearly arranged, intuitively operable and equipped with a large number of new, powerful functions. This enables the combination of work step and high-level language programming under one user interface and thus very fast, rational and intuitive NC programming and work preparation.
ShopTurn & ShopMill
- Work step programming
ProgramGUIDE
- graphical programming with animated elements
DIN/ISO & SINUMERIK High level language
- maximum programming freedom
Intelligent functions support the operator in the simplest way in his daily work - e.g. screenshots with the key combination CTRL+P.

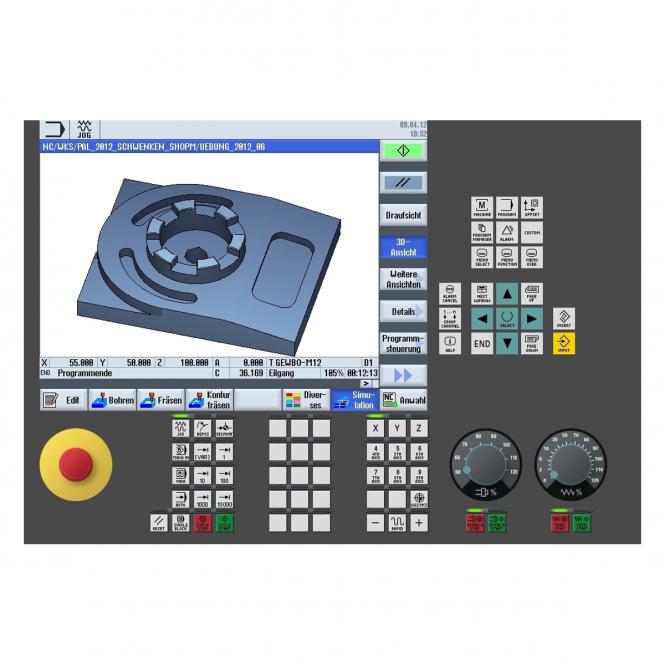

SINUMERIK Operate is also a new standard in user-friendliness when it comes to graphical support. Animated elements are a helpful function in this respect, as they anticipate every processing step and display it graphically animated.
Simple steps for successful working (Features)
When setting up a workpiece, the measuring process is presented clearly and concisely by animated elements. Complex workpieces can be manufactured in one clamping by simple and fast handling. Different kinematics are easy to set up.
If desired, the drawing of the machining or the simulation can be activated and displayed.
SINUMERIK Operate combines the whole orchestra of functions for operating and programming in one user interface for efficient machine operation.
Hardware
- Processor 2GHz (single core)
- RAM 4 GB
- Storage space approx. 3.2 GB for complete installation
- Graphics card: minimum resolution 640 * 480 pixels
- mouse, keyboard
Operating system
- MS Windows 7 Home Basic, Home Premium, Professional, Ultimate, Enterprise (32- and 64-bit)
- MS Windows 8.1, MS Windows 8.1 Pro, Enterprise (32- and 64-bit)
- MS Windows 10 (64-bit | not supported: Mobile, Mobile Enterprise)
Software
- Adobe Reader® software
User profile
- To install SinuTrain you need administrator rights
- 20x 300H- student licenses
- SINUMERIK 840D SL
- SINUMERIK 828D/828D BASIC
- With CNC software 4.8 SP2 HF1
- For Windows 7 32/64 BIT
- For Windows 8.1 32/64 BIT
- Turning / Milling / Universal Multi-channel
For non-commercial training purposes only
License agreement required!
Exchange/cancellation excluded
This product may only be used for educational purposes. It is available for trainees and students only (no commercial use). Special license rules apply. Please download the corresponding <A href="/out/media/pdf/33833-additional-agreement-sce-tp-en.pdf" target="_blank">license agreement</A> and submit it stamped and signed together with the order and the copy of your valid student ID via mail, fax or scan. The order can only be processed if we have received these documents in full.
