SINUMERIK Operate Training Software - The new operator interface for efficient machine operation
The new SINUMERIK operator interface is now even clearer and more intuitive. SINUMERIK Operate combines the familiar HMI-Advanced, ShopMill and ShopTurn under one consistent, innovative operator and programming interface. SINUMERIK Operate is clearly arranged, intuitive to use and equipped with a wide range of new, powerful functions. This makes it possible to combine work step and high-level language programming under one user interface and thus to achieve very fast, rational and intuitive NC programming and work preparation.
Intelligent functions support the operator in the simplest way in his daily work.
SINUMERIK Operate is also a new standard in user-friendliness when it comes to graphic support. When setting up a workpiece, the measurement is clearly and vividly displayed by animated elements.
Complex workpieces can be manufactured in a single setup thanks to simple and fast handling. Different kinematics are easy to set up.
Machining recording or simulation can be activated and displayed if desired.
SINUMERIK Operate combines the entire orchestra of functions for operating and programming in one user interface for efficient machine operation.
- ShopTurn & ShopMill
Programming of work steps
- ProgramGUIDE
Graphical programming with animated elements
- DIN/ISO & SINUMERIK high level language
maximum degree of freedom in programming
News:
- Automation License Manager V6.0 HF1
- Windows 10 release
- Integration of several SINUMERIK CNC-SW packages in one user interface
- Extension of display resolutions incl. 16:9
- SinuTrain Workbench with new functions
- Operation via menu navigation and icons
- Tile display of all user machines can be arranged with Drag&Drop
- Info tile for displaying important properties of the selected machine
- Assignment of user image files
- Creation and management of user templates incl. marking with own logo (not for SinuTrain Basic)
- Multi-window mode: undockable subwindows "Machine control panel" and "Operator panel" in machine simulation
- Integration of SINUMERIK Integrate Run MyScreens
- Transfer of OEM-specific tool management
- The delivery includes a USB stick and a link to the software. To get the corresponding data carrier, the corresponding DVD can be ordered (SinuTrain Basic).
Languages: English, French, German, Italian, Simplified Chinese, Spanish
CNC programs created with SinuTrain for SINUMERIK Operate can be used on real machines. However, this requires an adaptation of SinuTrain to the SINUMERIK configuration of the machine. The adaptation can either be performed by the user with the configuration tool, which can be purchased separately for OEMs, or by means of a service that can be ordered.
Several different configurations can be saved in SinuTrain for SINUMERIK Operate, so that even a larger machine park can be served. To ensure maximum compatibility with different SINUMERIK software versions on the machine, SinuTrain for SINUMERIK Operate can be installed several times in the associated software versions on a PC.
- DIN/ISO programming with ProgramGUIDE
- ShopMill/ShopTurn work step programming
- Multi-channel programming with programSYNC (only SinuTrain Complete)

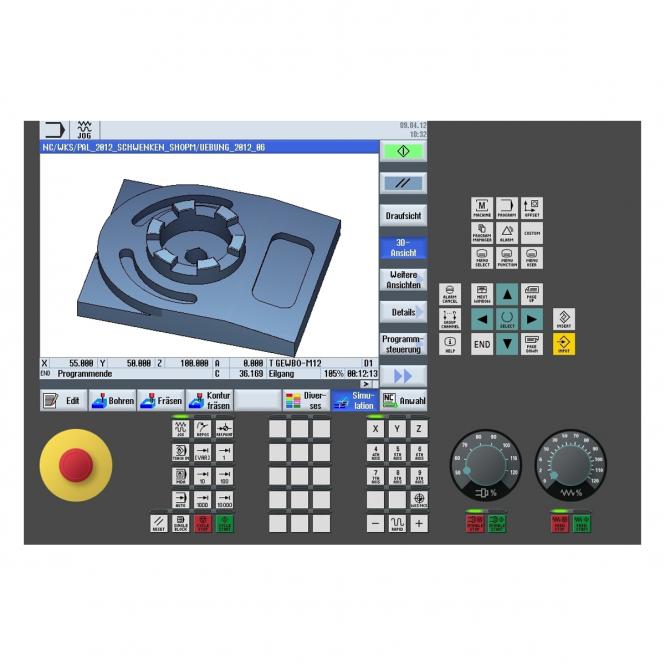

- Full-fledged graphical CNC simulation
- TCP/IP Ethernet networking with machines
- Print function for DIN/ISO and ShopMill/ShopTurn work step programs
- Integrated CAD reader for importing DXF files
Requirement: Installed and licensed version of SinuTrain for SINUMERIK Operate 4.93.
Hardware
- Processor 2 GHz (single core)
- RAM 4 GB
- Memory approx. 3.2 GB with complete installation
- Graphics card: minimum resolution 640 * 480 pixels
- Mouse, keyboard
Operating system
MS Windows 10 (64-bit | not supported: Mobile, Mobile Enterprise)
Software
Adobe Reader®
User profile
To install SinuTrain you need administrator rights
The delivery is made without software on data carriers, here the customers receive a download link with reference to the GTAC download server as part of the delivery.
The range of functions is activated with the corresponding license key depending on the order. To protect against unauthorized copying, SinuTrain uses the Automation License Manager (ALM).
The presence of an "old" SinuTrain license key in the ALM serves as proof of purchase of a SinuTrain license and is a requirement for all update versions.
The USB stick and the license number encryption also contain whether the license is a single license or a classroom license (with number of PC seats).
Please note: In addition to the purchase of the software, a 12-month software maintenance agreement must be concluded. After this period you will receive an optional offer to extend the software maintenance.
