SYMplus PALplus Milling
Single User License

Item No.: 10891

Add to wish list

SYMplus PALplus Milling - Programming with the new PAL coding

SYMplus PALplus Milling is a learning and training program for CNC programming according to DIN and preparation for the PAL examination. This test is based on a new coding, which represents a considerable expansion in quality and quantity compared to the previous PAL command set. For example, a technology cycle can now be linked with position cycles even after PAL. And programming with R as an alternative to I and J and the integration of chamfers/roundings are also possible.

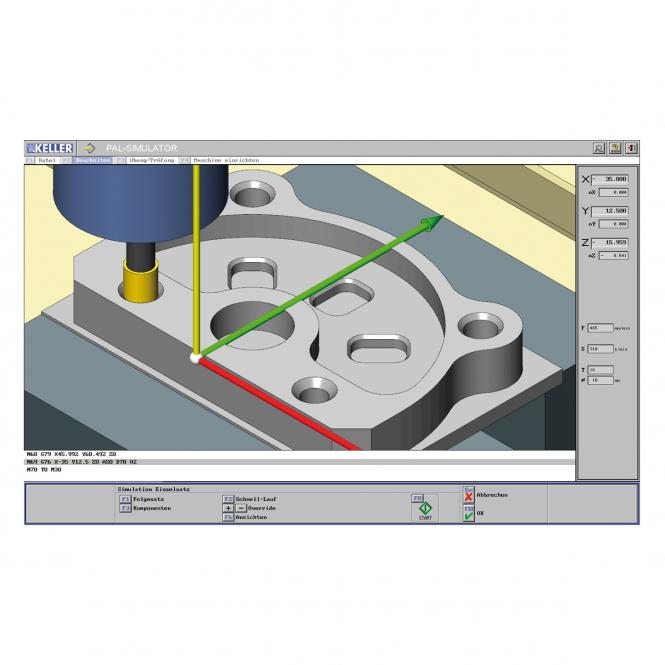

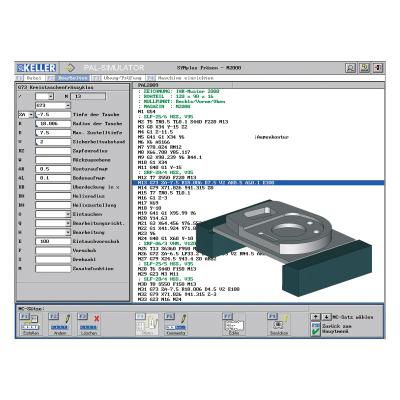

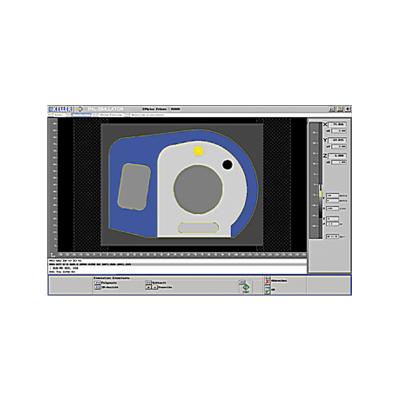

PAL Simulator

In the simulator - with all new commands and cycles that have been relevant for testing since 2009 - all NC blocks can be programmed in a "guided mode". Input dialogues, extensive help pictures and a meaningful simulation with magnifying glass, single block etc., also in 3D, thus enable targeted learning.

PAL multimedia

The extension of the PAL coding means more programming comfort - especially for CNC beginners but also additional learning effort. In order to support this learning, KELLER has developed a multimedia-based introduction in addition to the new PAL simulator. This allows the learner to familiarise himself interactively step by step with the cycle parameters. The subject of cutting data is also taught in a practical way.

You need plusCare for every technology.

When ordering, please provide an e-mail address for sending the download link.

SYMPlus PALplus Milling is provided as a download. The license is protected by a USB dongle. As an alternative option, the program can also be started with access data via a permanent Internet connection (CmWAN). All available standard postprocessors for generating NC programs for your control are included, including the 3D simulation expansion module.

When ordering, please specify an e-mail address for the download link and the type of machine controller for the corresponding post processor.

Commercial PC, e.g. with Intel ® Core™ 2 Duo E8400 @ 3GHz
Recommended operating systems: Microsoft Windows® 7 / 8 / 8.1 / 10
Main memory: min. 2 GB
Hard disk space: approx. 2 GB free per technology;
Screen resolution: min. 1024 x 768 px
OpenGL-compatible 3D graphics card, like the GeForce GT 210 (1024 MB)
PC keyboard and mouse
Sound card and speakers
Internet connection for one-time license activation (not permanent, exception CmWAN see below)
Data transfer to the controllers via network connection, serial interface (with handshake RTS/CTS), USB interface
There are two alternative licensing options available, which are determined in advance:
- Cm or CodeMeter - with CmStick (dongle) at USB2 port or
- CmWAN or CodeMeterWAN - with permanent Internet connection

Milling postprocessors are available for the following controllers, among others, or are included as standard from SYMplus with plusCARE™:

BOSCH ALPHA 3
Cover Contour 2, Dialog 3, Dialog 4, Dialog 11
DIN/PAL 1994
EMCOtronic M2
EMCOtronic T2
ENGELHARDT 3300
FADAL CNC 88 HS
FAGOR
FANUC 0i/21i, Series 0-M, Series 0-MATE, Series 6-M
GSK 980MD
HAAS VF, TM, MiniMill
HEIDENHAIN TNC 155/355 dialog, TNC155/355 DIN, TNC 310 dialog, HEIDENHAIN TNC 4XX dialog, TNC 4XX DIN, TNC 530 dialog, TNC 620 dialog
BRIGHT UniPro 80
HNC-21M
HURCO
MAHO CNC 232/234/332, CNC 232/234/332, CNC 432, MillPlus
MAZAK M32
NUM 1060F, NUM 760F
NUMERIC
PAL 2009
OKUMA OSP U10M/U100M
SINUMERIK 3M, 802C, 802D, 808D, 810D/840D, 810M/820M, 840C, SINUMERIK 840D sl / 828D, ShopMill ISO
GRAPE BZ TVC400
WABECO
