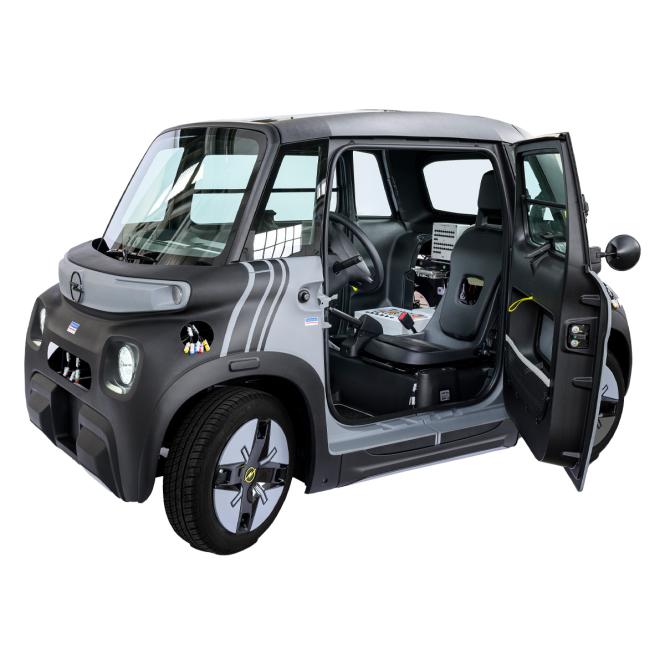

The training vehicle, based on a 48-volt system, has been specially developed to provide practical and didactically valuable training. With the option of simulating up to 30 faults, it offers a unique learning experience that is ideal for vocational training and further education.
The didactic concept is based on the requirements of DGUV 209-093 and covers content up to the demanding level 3S. This ensures that your participants are always trained in accordance with the latest safety and training standards.
Another advantage is the operating voltage of <60 volts (DC), which enables safe working. This means that your training participants can safely acquire and directly apply important skills.
Details Comprehensive didactic conversion: flexibility and maximum practical relevance Our didactic conversion package offers a wide range of customisation options to optimally adapt your training vehicle to the needs of basic and advanced training. The highlights of the didactic conversion include:
Customisable fault circuit Choose from different versions to make the training even more practical and varied.
Precise measuring points With 2mm measuring points for the wiring system and 4mm measuring points for the drive system, we guarantee precise measurements and smooth training processes.

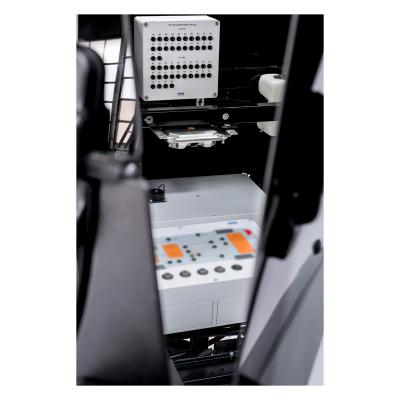

Parallel break-out measuring box for the electric control unit Enables detailed and safe measurements directly on the control unit to gain deeper insights into the system.

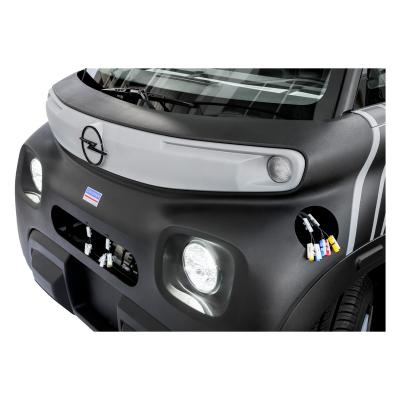

Removable break-out measurement box for the traction battery This function offers additional safety when measuring inside the battery and protects against unintentional contact. Body cut-outs for optimum access For quick and easy access to the measuring points - minimise time and maximise efficiency in training operations.
Disconnection, insulation and potential equalisation trainer Specially developed to train your participants in the handling of safety-relevant processes and thus increase safety in the workplace.
The special highlight in the standard equipment: maximum innovation and functionality Particularly noteworthy is the innovative fault circuit within the traction battery, which is equipped with 10 specifically selected faults and offers realistic scenarios for training. Another highlight is the specially developed break-out measuring box, which is equipped with an integrated circuit diagram. This not only enables simple fault analysis, but also offers additional flexibility and safety during measurement thanks to a disconnect plug for disconnecting the measuring box. In addition, the system has a visible cut-out of the traction battery, which is protected by a perspex cover if required. This provides both a safe and convenient way of viewing part of the traction battery without compromising on safety. With this equipment, you can rely on maximum functionality, innovative technology and a training experience that can be directly implemented in professional practice.
- Operating vehicles and systems
- Identifying and eliminating malfunctions
- Diagnosing faults and malfunctions on vehicles
- Decommissioning and commissioning technical vehicle systems
- Dismantling, repairing and installing components, assemblies and systems
- Measuring and testing systems
- Safety and health protection at work
- Planning and preparing work processes as well as checking and evaluating work results
Standard equipment:
-
Fault switch box with manual toggle switches and 20 faults
-
Parallel break-out measuring box for the electric control unit (permanently installed)
-
Removable parallel break-out measuring box for measuring inside the traction battery including cut-out and transparent cover for the traction battery
-
Body cut-outs for easy access to the measuring points
-
Measuring points on faulty components
Optional equipment:
-
Isolation trainer as a training model that can be operated independently
-
Insulation and potential equalisation trainer as a training model that can be operated independently
-
Upgrade of the fault circuit to a WLAN function with 30 faults (basic or premium)
