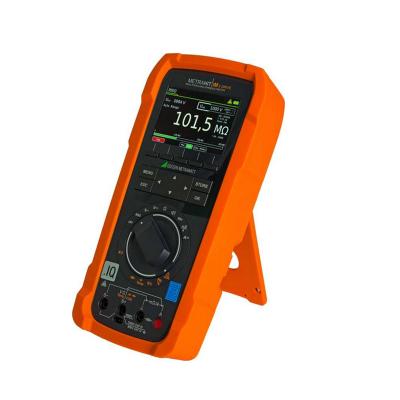

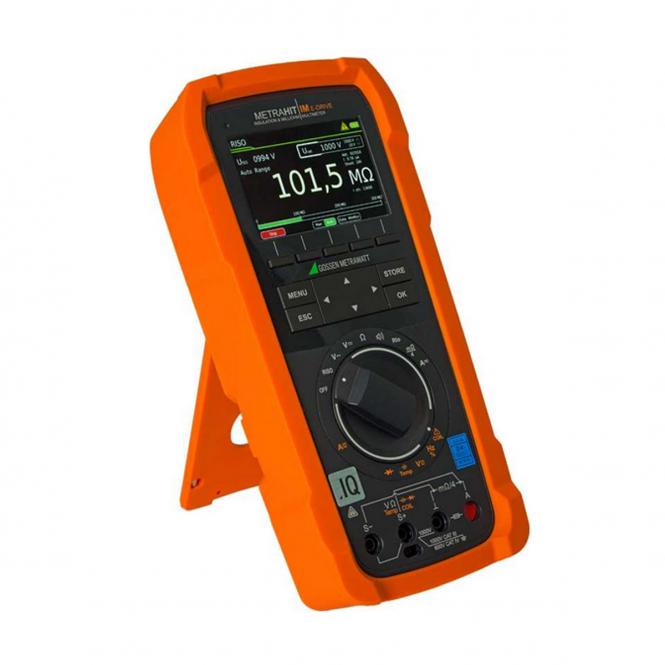

The METRAHIT IM E-Drive is an all-in-one device with 30,000 digits: multi-milliohmmeter, insulation tester, winding tester and data logger.
Applications are found in service and diagnostics on electrical machines and systems, especially in the automotive industry, electrical machine construction and aeronautical engineering.
Highlights:
- Milliohm measurement with 4-wire connection (Kelvin measurement) with 200 mA or 1A
- Insulation tester with test voltages from 10 to 1000 V
- Winding test with 1000 V test voltage
- Interfaces: Bluetooth or WIFI, USB with optional mains module
- DAkkS calibration certificate included
Advantages:
- Safety-relevant tests for electrical devices, drives and installations with only one field-capable device
- High-voltage system testing according to UN ECE R100
- Insulation resistance measurement according to EN 61557-2 / VDE 0413-2
- Rlow installation test according to EN 61557-4 / VDE 0413-4
- Bonding test or potential equalisation measurement, e.g. on the outer skin of the aircraft (lightning protection discharge test/"wick test")
The multimeter is a portable, extremely robust multimeter designed for field use. It is suitable for maintenance, service and diagnosis of electrical machines, drives and systems, e.g. in the automotive, avionic, energy or automation sectors.
The All-In-One device is an insulation tester, milliohmmeter, short-circuit tester and universal multimeter. It is ideal for safety checks and diagnostics on electric and hybrid vehicles as well as any type of electrical machinery.
It allows for winding short circuit measurements when used with an optional Coil Test Adapter.
- Insulation resistance measurement up to 3.1 GΩ with external voltage detection, test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V according to EN 61557-2 / VDE 0413-2.
- DAR: PI:
- 4-wire milliohm measurement with Kelvin connection and 200 mA or 1 A measuring current for precise measurement of the smallest resistances with 1 microOhm resolution.
- 2-wire Rlow measurement with 200 mA test current according to EN 61557-4 / VDE 0413-4
- Rlow measurement
- Multifunction instrument
- True RMS measurement TRMS AC/AC+DC for current/voltage up to 10/100 kHz
- Low-pass filter AC, AC+DC
- Direct current measurement
- Current measurement with clamp sensors: The transmission factor can be set with CLIP from 1:1 to 1:1000 and is taken into account in the ampere display.
- Capacitance measurement
- Precision temperature measurement °C, °F for RTD and TC-K sensors
- Diode measurement K flux up to 5.1 V) and continuity test
- Acoustic signalling
- Acquisition of min-/max-values; DATA Hold
- Data logger thanks to integrated memory and real-time clock, also for single measured values
- Push/Print function transfers measured values to application software at the touch of a button
- Programmable sequences for test routines
- Colour graphic display
- Modular power supply: standard lithium quick-change battery, optional WPC module for inductive charging and mains module with USB interface, change without interrupting the measuring circuit thanks to contact-protected module socket
- Automatic socket lock (ABS) for current input
- Test probe with function keys START (ISO) and STORE
- Housing IP52, protected against dust and dripping water, exchangeable rubber protective cover
- Interfaces: BT Bluetooth integrated - Device version with WLAN integrated - USB with optional power supply module
- Windows software IZYTRONIQ for documentation, creation of test reports and graphic evaluation of measurements

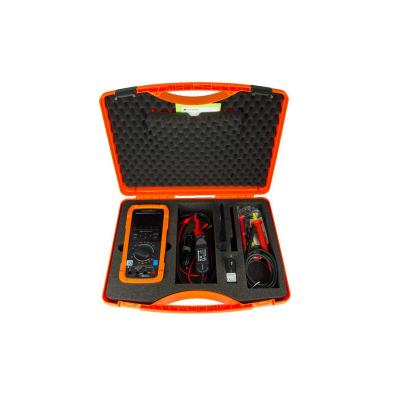

- METRAHIT IM E-DRIVE BT multimeter with protective rubber cover
- test probe with START and STORE function
- pair of safety test leads type KS17-2 with 4 mm test probe
- Kelvin clamp type KC4
- Kelvin probe type KC27
- Lithium-polymer quick-change battery with Micro-USB charging socket
- USB plug-in power supply (5VDC 2A) with charging cable USB to micro-USB
- Software IZYTRON.IQ BUSINESS Starter
- Quick reference guide German/English
- Operating instructions in German and English (download from the website www.gmc-instruments.de)
- DAkkS calibration certificate
- Hard case to hold the mutlimeter with accessories
