Circuit diagram layout VW sensors/actuators
Additional equipment for the functional models

Item-No.: 81979 and 93025

Item No.: 89767

Add to wish list

Circuit diagram support for student measuring station Item-No.: 83454.

Suitable for the training stand/functional model VW sensors/actuators Item-No.: 81979 and 93025.

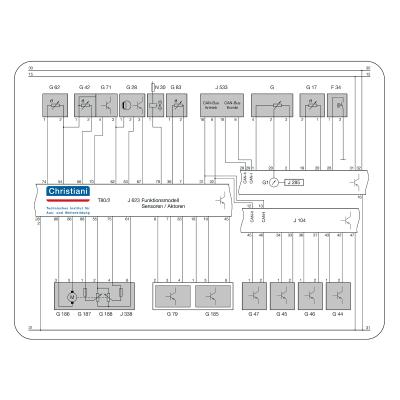

The overlay is created with circuit diagrams and symbols according to the original circuit diagram of the

training stand. It contains exemplary sections of the complete system. For the measurement exercises to

be carried out, the inputs and outputs of the components to be tested are labelled with the PIN

assignment according to the original diagram.
