Christiani functional motors: State-of-the-art technology for your training

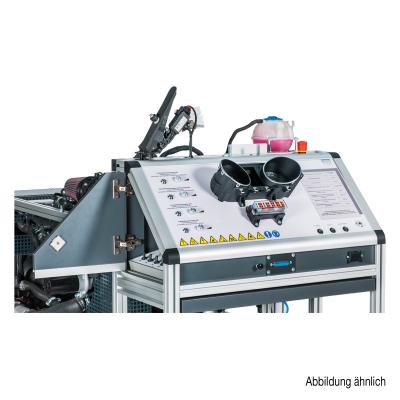

Our Christiani functional engines are mounted on a mobile frame made of high-strength aluminum profile and offer maximum mobility and stability. The intuitive control panel on the front integrates all the essential control elements: instrument cluster, fuse block (if original cannot be used), ignition starter switch, emergency stop switch and an OBD interface.
Optimal working environment

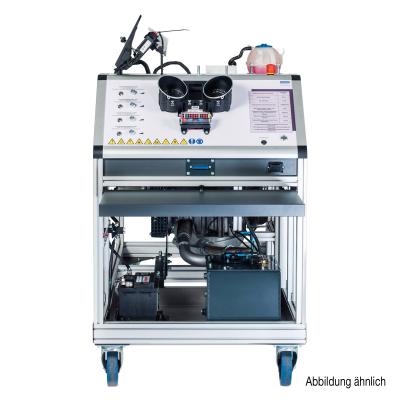

Below the interface plate is a pull-out shelf that is perfect for measuring devices, laptops or work documents. This creates an organized and efficient working environment.
High-tech remaining bus simulation
Our training stands have an innovative residual bus simulation that ensures the perfect functioning and diagnostic capability of the engine control unit. This technology enables you to create training conditions even without installed drive components.
Quality and safety
The functional motors from Christiani stand for the highest quality, functionality and safety. All rotating components and assemblies with high operating temperatures are protected against accidental contact. All components used are original parts from the respective manufacturers, which ensures maximum reliability.
Exemplary superstructures

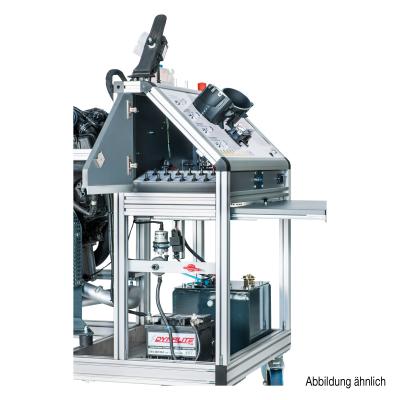

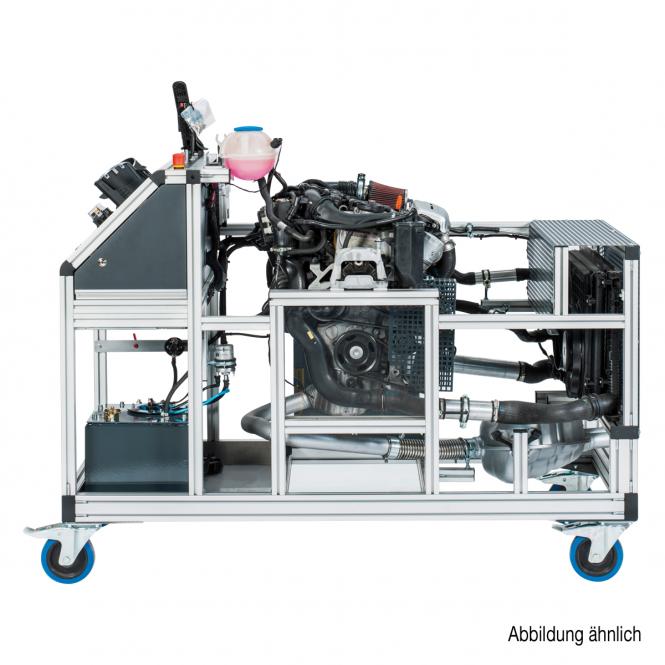

The illustrated superstructures show examples of previously manufactured functional engines and training stands. Due to the emissions of a combustion engine, use is only permitted outdoors or in rooms with an exhaust extraction system that complies with regulations.
Expandable functions
Our functional motors can be optionally equipped with a wide range of functions to optimally meet your training requirements:
1. fault circuit:
The optional fault circuit can be used to simulate up to 30 different electrical faults in the engine control unit, the voltage supply system, the fuel injection system and the fuel supply system. This enables realistic learning situations and
effective troubleshooting.2. component simulation:
The optional component simulation shows different operating states and emergency running characteristics. By manipulating individual sensors, the reaction of the engine management system can be precisely reproduced.
3. interface for exercise measuring stations:
There is an optional interface on the lower front panel that can be used to connect up to 12 exercise measuring stations. This enables centralized measurements and increases the efficiency of your training.
4. test boxes with test adapter:
Optional test boxes and test adapters allow the measurement and diagnosis of all system-relevant signals and voltage values. Parallel measuring adapters enable disassembly-free measurement even in hard-to-reach places.
5. measuring points for faulty components:
Installation of measuring points with strain relief on faulty components in 4mm or 2mm. Configuration according to your requirements.
Suitable solutions for your needs
Our functional motors are flexible and customizable to meet your exact requirements. For detailed information and suitable variants, please visit the "Matching" section. Experience state-of-the-art training technology with Christiani functional motors - your reliable partner for effective and practical training courses
Subject to technical changes
- Testing and repair of mechanical, electrical and electronic circuits and systems
- Assembly and disassembly work on the engine
- Working with maintenance and circuit diagrams
- Measurement of electrical quantities and signals, as well as their documentation and evaluation
- Identification of individual components and getting to know their operating characteristics and parameters
- Learning how to use standard workshop diagnostic equipment
- Working with electrical and mechanical measuring and testing devices e.g. return flow measurement
- Inspection of the components to be able to decide on necessary repair measures
- Motor vehicle mechatronics technician with focus on passenger car technology
- Service technician
- Master Craftsman/Institute for Automotive Technician
- Working with maintenance plans, circuit diagrams, circuit symbols, terminal designations, cables, cable connections
- Designation of mechanical, electrical and electronic components, assemblies and systems
- Testing and repair of mechanical, electrical and electronic circuits and systems
- Selection and use of mechanical and electrical measuring and test equipment
- Measurement and evaluation of electrical quantities and signals
- Documentation of work results and evaluations by comparison with calculated values and manufacturer specifications
- Use of the possibilities of standard workshop diagnostic equipment
- Inclusion of problem-solving strategies or alternatives in the diagnosis
- Documentation of the measured values, signals and error logs and analysis and evaluation of these
- Checking individual components and deciding on necessary repair measures
Immediately usable and mobile functional motor incl. error circuit, data sheets, circuit diagrams and operating instructions
- All original components of the respective manufacturer required for the function
- Control panel with instrument cluster, ignition start switch, emergency stop switch and OBD connection
- Lockable component state simulation for the manipulation of different sensor values and for the representation of emergency running characteristics
- Interface for student measuring station
- Sheet steel fuel tank (20 litres) with original inline fuel pump, control unit for fuel pump and closed original tank ventilation system
- Fill level display via combination instrument
- Battery main switch
- Dimensions: L x W x H 1,700 x 850 x 1,600 mm
- Weight: approx. 300 kg
