The training was made from original parts of various vehicles (Volkswagen, Ford, GM). Particular emphasis was placed on the as realistic as possible representation of the components and their connections. Thus, measurements, error simulation and error search can be performed as in a conventional vehicle.

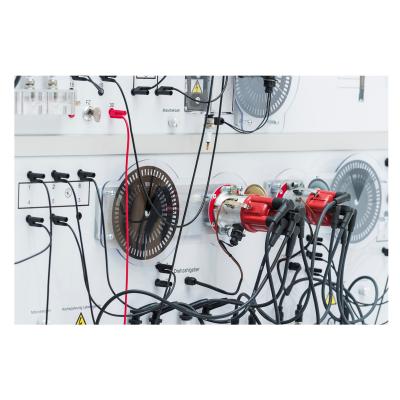

Transistor ignition with Hall transmitter (TSZH), transistor ignition with inductive generator (TSZI) and static high voltage distribution (RUH) are built up. From each component, the connections are made with 4 mm safety sockets facing forward. Each connection is labeled with the terminal designations according to DIN 72522 or, depending on the design, with the designations of the respective original circuit diagram. All measuring points are used for working with an oscilloscope and multimeter on the front side and are therefore easily accessible. The components and components are wired via a 4 mm safety laboratory cable.

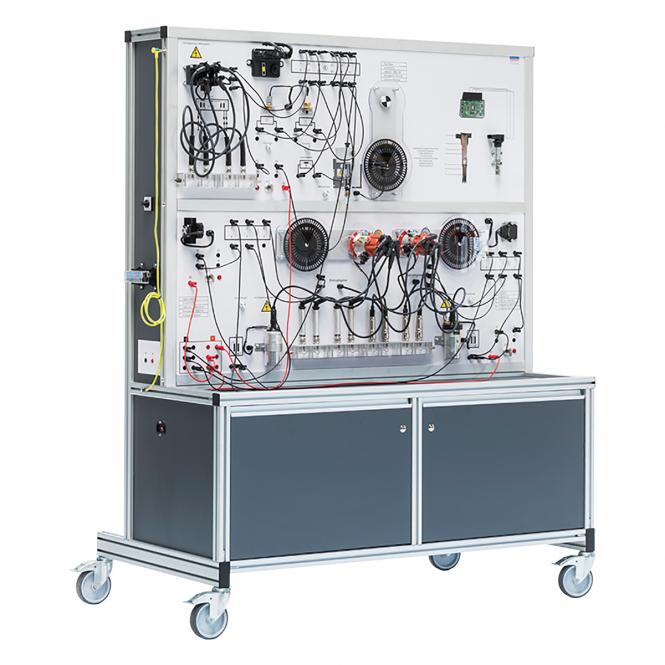

The cabinet with lockable wing doors also serves as a storage space for the measuring instruments or optional accessories. The mobile structure consists of a high-strength aluminum profile with 4 lockable heavy-duty steering rollers. Wiring diagrams and work documents are included in the scope of supply.
Wiring diagrams and work documents are included in the scope of supply.
Connectivity: Multimeter, oscilloscope, stroboscope.
- Checking and repairing mechanical, electrical and electronic circuits and systems
- Working with maintenance and circuit diagrams
- Measuring electrical variables and signals, as well at their documentation and evaluation
- Identifying individual components and learning about their operating characteristics and parameters
- Working with electrical and mechanical measurement and test equipment
- Checking components to decide which repair measures are necessary (if any)
- Motor vehicle mechatronics technician with focus on passenger car technology
- Service technician (m/f)
- Working with maintenance schedules, wiring diagrams, symbols, terminal designations, wires and wiring connections
- Naming mechanical, electrical and electronic components, assembly groups and systems
- Checking and repairing mechanical, electrical and electronic circuits and systems
- Selecting and using mechanical and electrical measuring and testing equipment
- Measuring and evaluating electrical variables and signals
- Documenting work results and evaluating by comparing them with calculated variables and manufacturer specifications
- Documenting, analysing and evaluating measured values, signals and error protocols
- Examining individual components and making a decision about necessary repair measures
Immediately usable and mobile functional model incl. voltage stabilized 12 Volt switching power supply, data sheets, circuit diagrams and operating instructions.
- Immediately usable and mobile functional model with lockable base units
- Voltage stabilized switching power supply (installed in the base cabinet)
- Connection cables with safety sockets
- 3 independently functioning functional units with manual speed control
- Spark plugs in Makrolon blocks with positive and negative pressure connections
- Spark gap simulation
- Front side writable with foil pens
- Dimensions: L x W x H 1600 x 800 x 1950 mm
- Weight: approx. 220 kg
- Electrical connection: 240 V mains connection
