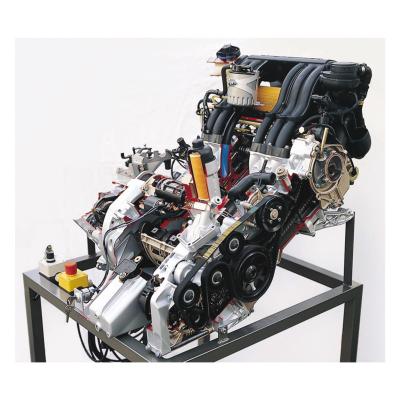

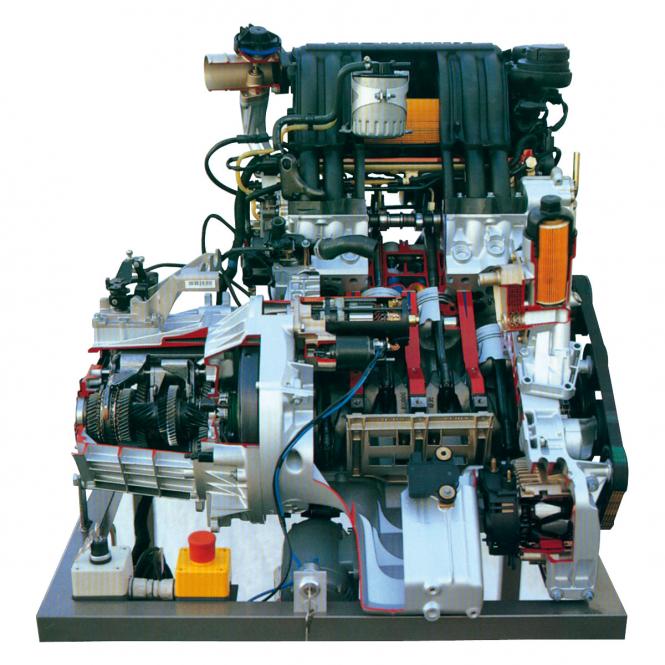

Diesel Engine (Mercedes-Benz A-Class)
with Common Rail Technique

A superlative engine with the latest technique. The engine is driven by a 220V geared motor, all the assemblies also run. The start can be engaged, the transmission shifted.

The following are cutaway:

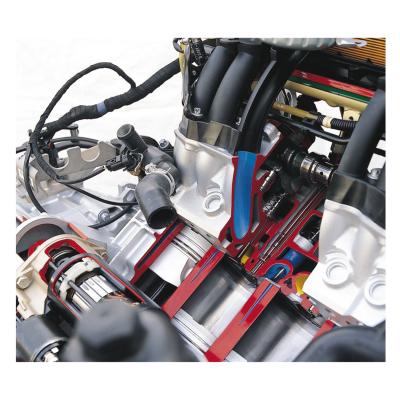

• cylinder head (with 16 valves)
• cylinder block
• crankcase
• oil pan

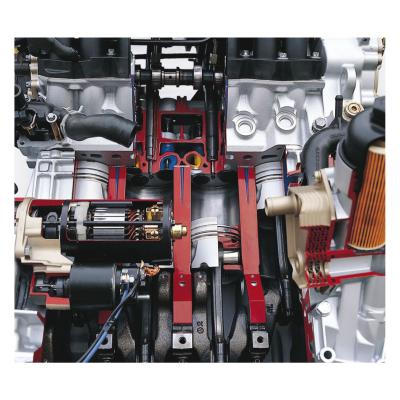

• one piston with cooling duct
• oil injection cooling for pistons
• hydraulic valve tappet
• oil pump
• chain case
• generator (internally ventilated)
• starter
• exhaust gas re-circulation valve
• turbocharger
• intake manifold
• air filter box
• high-pressure pump
• one injector
• feed pump
• rail manifold
• valve cover
• air-mass sensor
• oil filter with heat exchanger
• thermostat
• modern single-vane vacuum pump

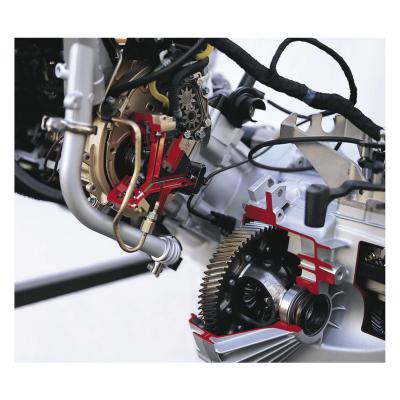

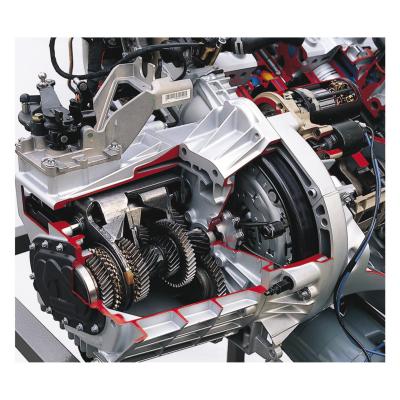

• 5-gear transmission and differential

All actors and sensors are available and connected to the cable tree.
