Common Rail Injector

Common Rail Injector
Bottom Mounted Solenoid Coil

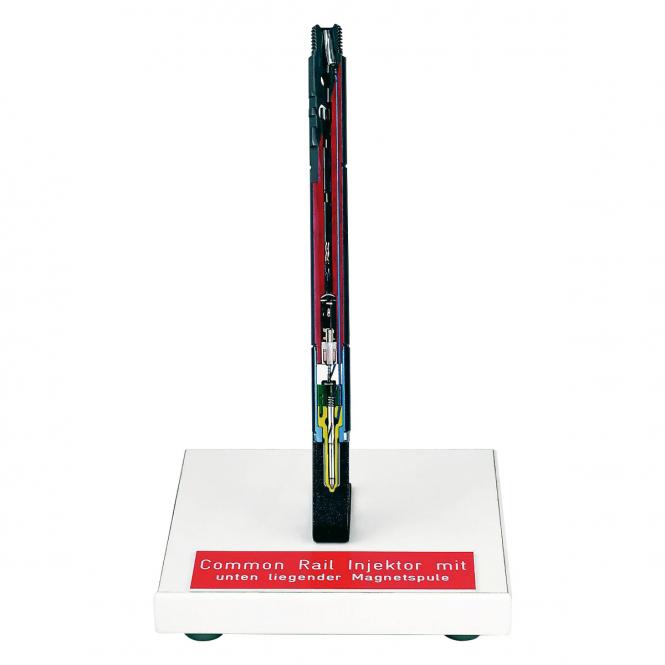

Cutaway Model
Item No.: 80879
Add to wish list

With this new design, the solenoid valve and the valve body have been moved downwards compared to previous injectors and are located directly above the nozzle needle. The long and sluggish pressure rod is no longer required. This enables fast switching times, even with solenoid valves. Furthermore, a helical groove is milled into the nozzle needle. This creates an optimum spray jet of fuel when it leaves the injection nozzle.

The following can be seen in the section of the injector:

  • Injector housing with union nut
  • Nozzle body with nozzle needle
  • High pressure channel
  • Pressure spring
  • Valve body
  • Solenoid valve
  • Fuel supply
  • Stable filter and electrical connection
