The Direct Shift Transmission training stand will demonstrate the possibilities of automatic power transmission without loss of torque converter slip and tractive effort. The transmission is opened in the area of the shift forks and equipped with a camera. Via a small monitor it is possible to observe shifting processes during operation.
An additional video output enables the connection of additional devices. An original instrument cluster, gateway and other components required for communication via CAN data bus are mounted. Conventional diagnostic devices can be connected via an OBD connector on the control panel. Hereby it is possible to read out the error memory and the measured value blocks e.g. for target/actual comparison.
The training stand is driven by a flange-mounted external 400 Volt 16 Ampere electric motor with frequency converter. This enables the control of the driving speed. This allows the switching processes to be simulated and observed in various operating situations.
- Maintenance, diagnosis and repair work on power transmission systems
- Testing of mechanical and hydraulic components
- Testing and repair of electrical and electronic systems on vehicles
- Working with technical documentation and circuit diagrams
- Working with standard workshop diagnostic systems
- Kfz-Mechatroniker/-in mit Schwerpunkt Personenkraftwagentechnik
- Kfz-Mechatroniker/-in mit Schwerpunkt System- und Hochvolttechnik
- Servicetechniker/-in
- Identification of existing power transmission systems
- Use of the possibilities of standard diagnostic equipment
- Interpreting the self-diagnosis of electronically controlled power transmission systems
- Investigation of influences of possible errors on the function of the system
- Analysis of the data exchange and the associated effects
- Planning based on work orders and error descriptions
- Use of technical documentation and circuit diagrams
- Determination of electrical and hydraulic quantities and values with the necessary test and measuring equipment
Training stand complete with manual and operating instructions, technical documentation and circuit diagrams.

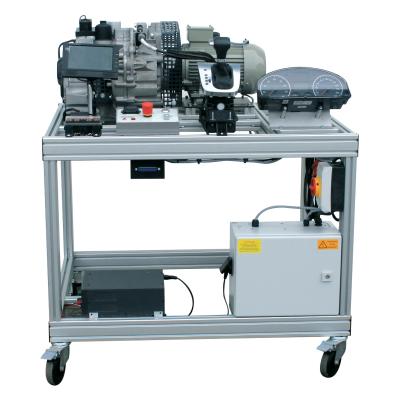

- Immediately usable and mobile functional model on a steerable rolling frame
- 6-speed direct shift gearbox 02E with wet clutch and the corresponding shift unit
- Instrument cluster and monitor for inline camera
- Makrolon plate with inline camera for the 1st + 3rd gear
- Control panel with emergency stop switch, OBD interface, brake light switch and ignition start switch
- 400 Volt 16 Ampere three-phase motor with frequency converter and speed control
- Power supply: 400 Volt 16 Ampere Mains connection
- Dimensions: L x W x H 1,600 x 880 x 1,400 mm
- Weight: approx. 160 kg
