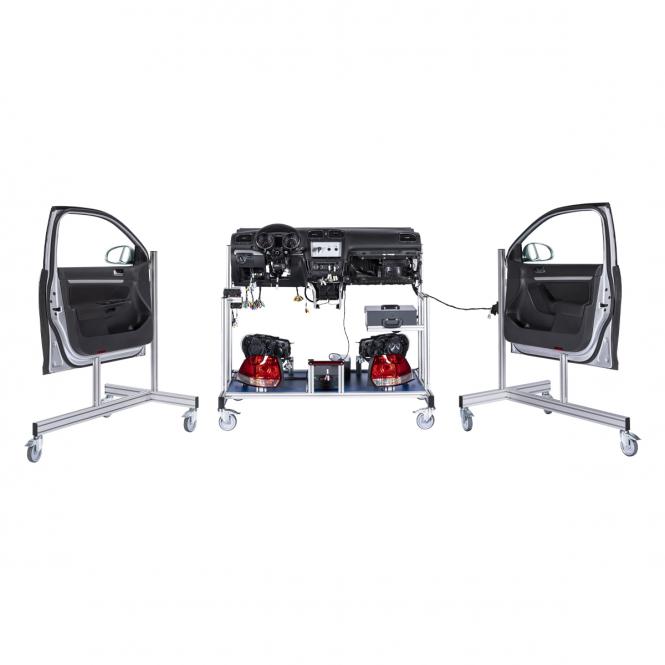

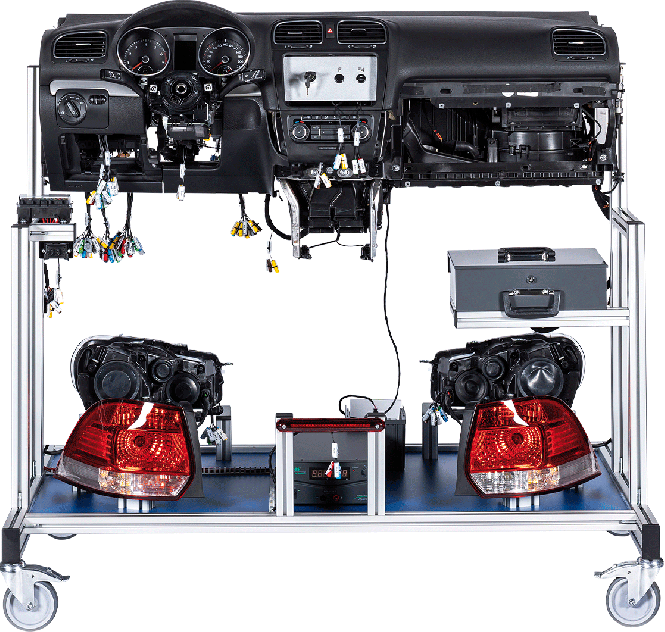

This training stand has been developed for practical use in automotive mechatronics training in the areas of CAN-LIN-Bus, central electrical system, Climatronic control, airbag and comfort system.
An integrated fault circuit with 20 faults allows troubleshooting in electrical connections and practical work with standard workshop measuring instruments and diagnostic systems. In addition, further errors can be switched in the CAN data bus 8 to enable troubleshooting in data communication between the various ECUs.
The cable connections between control units and installed components correspond to the original wiring diagram of the respective original vehicle. The connectors were left in their original condition.
All connections provided with error circuitry are provided with 4mm measuring sockets led out and labelled according to the original designation. The functional model has a vehicle-specific OBD interface for connection to diagnostic devices. Readout of fault memories of built-in control units and coding of functions according to manufacturer specifications is possible.
- Working with circuit diagrams, circuit symbols, terminal designations, cables, cable connections
- Benefits of the possibilities of standard workshop diagnostic devices
- Inclusion of problem-solving strategies or alternatives in diagnosis
- Checking individual components and deciding on necessary repair measures
- Coding of control units, adaptation of software versions and testing of data communication lines in compliance with legal and manufacturer-related regulations
- Troubleshooting the central electrical system via OBD diagnostic interface
- Automotive mechatronics technician with focus on passenger car technology
- Automotive mechatronics technician with focus on system and high-voltage technology
- Service technician
- Master craftsman automotive technician
- Naming of electrical and electronic components, assemblies and systems
- Testing and repair of electrical and electronic circuits
- Selecting and using electrical measuring and testing equipment
- Measurement and evaluation of electrical quantities and signals
- Documentation of work results and evaluations by comparison with calculated values and manufacturer specifications
Immediately operational and mobile functional model, data sheets, circuit diagrams and operating instructions. Alternatively, the training stand can also be operated with a standard vehicle battery. The scope of delivery also includes a manual with information on error ciruits.
- Immediately usable and mobile functional model
- Measuring sockets 4 mm

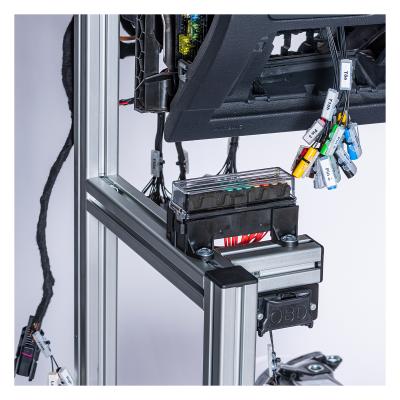

- OBD diagnostic interface
- Voltage stabilized power supply 230 Vac/50 Hz - 3-15 Vdc 40A

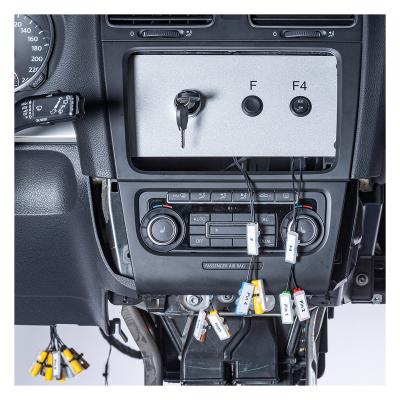

- Error switch box, lockable
Standard equipment driver and passenger door:
- Door control unit driver side
- Passenger side door control unit
- Electric windows driver side/passenger side
- Central locking
Furthermore the following components are installed:
- Onboard power system control unit
- Steering column control apparatus with switch unit
- Diagnostic interface (gateway)
- Headlight range adjustment manual
- Steering column control apparatus with switch unit
- Light switch
- Wiper motor
- H7 Main headlights
- Rear lights including rear fog light and reversing light (incl. reversing light switch)
- Brake light switch
- Hazard warning switch and interior light with door contact switch
- Air conditioning control unit
- Airbag control unit
- Switchboard insert
- Central control unit for comfort system
Optional equipment:
- Bi-xenon Bending Light (see "Matching this")
- Break-out Box for Driver's Door (see "Matching this")
- Power connection: 230 Volt Mains connection
- Dimensions (L x W x H in mm): 1,600 x 800 x 1,950
- Weight: approx. 140 kg
