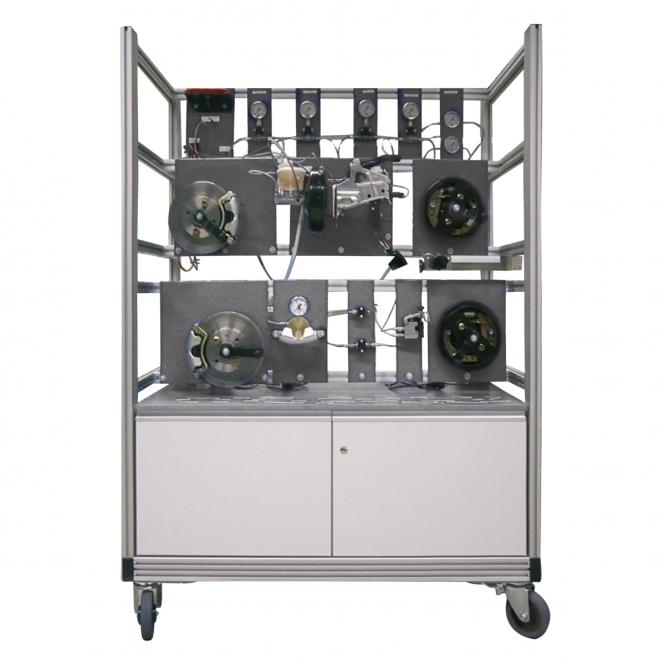

The brake system is modularly equipped with original components of a variably usable hydraulic dual circuit brake. The individual components and the arrangement of the parts also allow for diagonal brake circuit distribution by means of tests with conventional axle distribution. Pedal forces can be determined via the built-in drag indicator pressure gauge. In addition, the failure of a brake circuit and the air inclusion can be demonstrated and the hydraulic transmission forces with and without reinforcement can be determined.
A lockable box contains various shut-off devices for fault switching in the hydraulic circuits. The base cabinet with lockable hinged doors also serves as storage space for the measuring instruments or optional accessories. The mobile structure consists of a high-strength aluminium profile with 4 lockable heavy-duty swivel castors. Circuit diagrams and working documents are included in the delivery.
- Motor vehicle mechatronics technician with focus on passenger car technology
- Service technician (m/f)
- Determination and measurement of mechanical quantities, application of tables and formulas and evaluation of measured values
- Maintenance, diagnosis and repair work on brake systems
- Identification of the braking systems present in the vehicle
- Analysis of the functions and their interaction with other systems
- Application of diagnostic routines for limiting and determining faults in brake systems
- Investigation of the influences of possible faults on the driving behaviour and wear of the chassis and brake systems
- Consideration of manufacturer-specific quality standards for the replacement of components
- Planning of testing and repair and their implementation
Immediately usable and mobile functional model incl. hydraulic error circuit, hose diagram, operating manual and voltage-stabilized 12 Volt switching power supply.
- Brake pedal unit with brake booster, tandem master brake cylinder with brake fluid reservoir, brake light switch
- Brake pressure distributor (ALB regulator inclination-dependent)
- Piping system/brake hoses made of flexible steel braided lines (movable connection)
- Air bleed valves
- Vacuum pump for brake booster
- Stabilised 12 Volt switching power supply
- Hydraulic fault circuit
- Power connection: 110 / 240 Volt mains connection
- Dimensions: L x W x H: 1,600 x 800 x 1,950 mm
- Weight: approx. 240 kg
