Training Stand Drive Dynamics Control

Training Stand Drive Dynamics Control
ABS, EDS, ASR, ESP

Functional Model
Item No.: 33430
Add to wish list

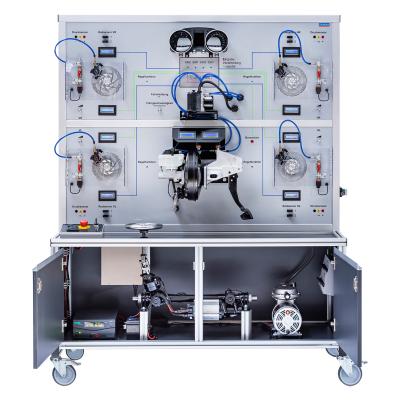

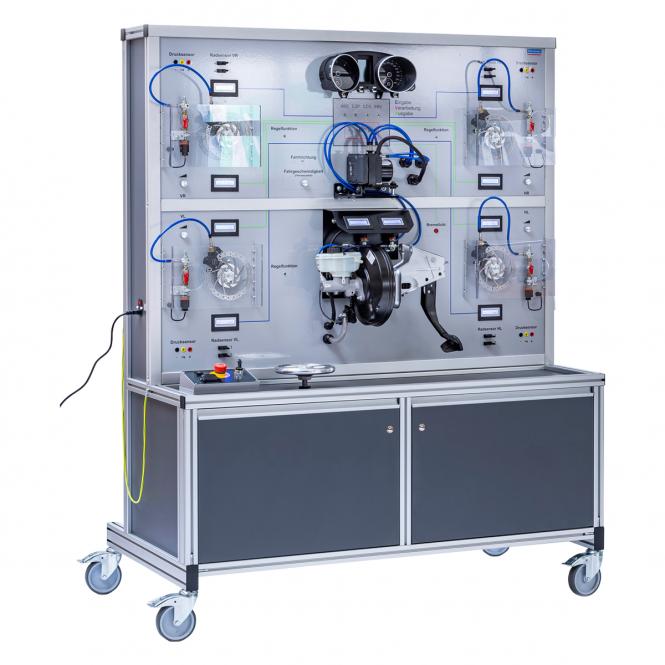

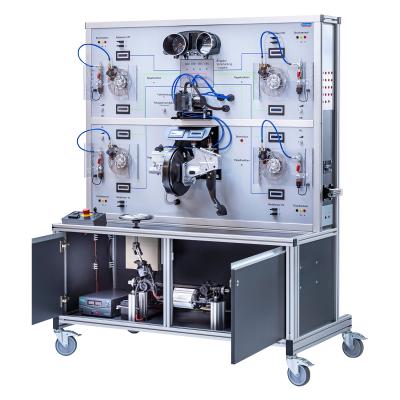

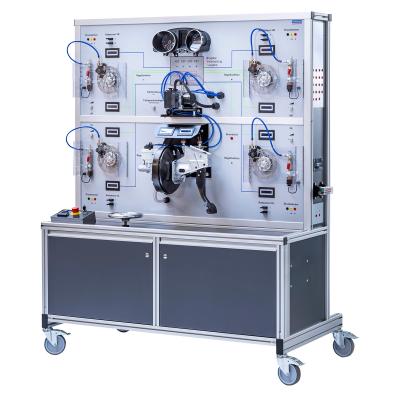

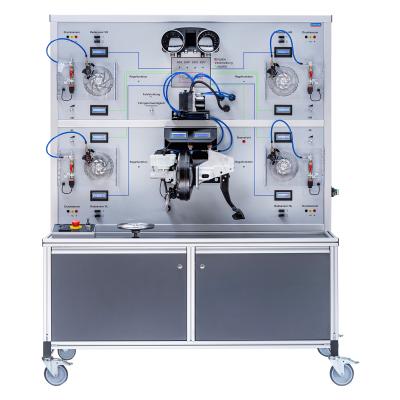

This functional model can be used to illustrate and examine functions and processes, faults and measured values as on the original brake system with vehicle dynamics control. The fully functional ABS/ESP brake system illustrates the various operating and control states. All original parts and required components are clearly arranged on the colour-printed front panel according to the IPO principle.

  • Arrangement in IPO principle: input - processing - output.
  • Driving dynamics control on the basis of VW Golf 6 original components used, with electric power steering, measurement of all relevant parts and components in the central circuit diagram measuring field via 4 mm safety measuring sockets. Mobile set-up for use in the lab and workshop with base cabinet and lockable doors.

Functional model ready to use incl. electromechanical power steering, voltage stabilised 12 volt switching power supply, vacuum pump, data sheets, wiring diagrams, manual and operating instructions.

  • Electromechanical power steering with double pinion
  • ABS/ESP MK 60 EC1 system from ATE
  • Master brake cylinder with brake booster and mechanical actuation
  • Voltage-stabilised switching power supply unit in lockable base cabinet
  • Vacuum pump for brake booster in lockable base cabinet
  • Fault circuit with 12 system faults in the lockable base cabinet
  • Magnetoresistive ABS sensors
  • Multi-pole wheels with alternating magnetic segments of different polarity with electric drive motors and speed control
  • Static friction simulation adjustable for each wheel
  • Front side printed in colour and writable with foil pens
  • Displays for indication of measuring and setting values
  • Circuit diagram measuring field with 4mm measuring sockets
  • Control panel with OBD diagnostic interface
  • Interface for practice measuring stations
  • Original ESP button
  • Ignition start switch
  • Emergency stop switch
