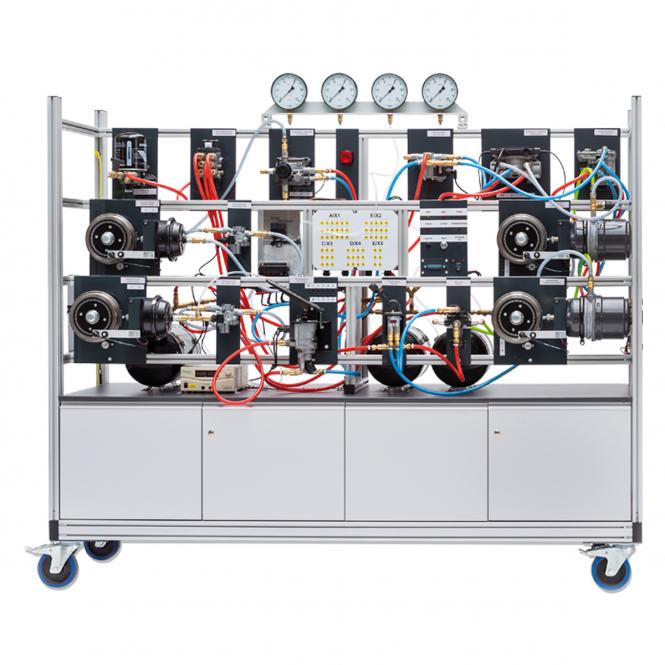

The motor vehicle compressed-air braking system consists solely of original components from WABCO. To show the EBS control procedures, the functional model has four electrically driven wheel units for simulation of the front and rear axle. An integrated fault circuit, with 10 practically oriented faults, makes it possible to follow realistic operating situations and practice troubleshooting. The modular system structure allows students to gradually become accustomed to the field of commercial vehicle compressed-air braking systems.
The flexible component connections ensure the greatest possible freedom in designing training situations and action-oriented learning content transfer. The differently coloured compressed-air lines support a clearly structured test set-up. The system has an OBD diagnostic interface for connecting suitable diagnostic systems. Another interface allows connection of up to 14 trainee measuring stations.
Supplied with four large pressure gauges and original test connections, the test steps of the functional and SP pressure protection tests can be presented in a logical structure in line with Appendix VIII § 29 of the German road traffic licensing regulations (StVZO).
The original WABCO diagnostic program, WABCO test equipment and WABCO presentation programs are available as enhancements and accessories. The size has been matched to the size of a conventional 80 cm door. This allows the set-up to be moved around a building without causing problems, allowing it to be used at various locations.
- EBS 1C compressed-air braking systems with original WABCO components
- Integrate fault circuit with 10 practical faults
- Measuring points on components with fault circuit
- Four large pressure gauges for functional and pressure protection tests (SP)
- Versatile test connections with T-piece for functional and pressure protection tests (SP)
- OBD diagnostic connection
- Interface for trainee measuring stations
- Training documentation, basic course on the compressed-air braking system
- Training documentation, EBS, ABS, ECAS
- Automotive mechatronics technician with focus on commercial vehicle technology
- Service technician
- Master Craftsman/Institute for Automotive Technician
- Performing maintenance, diagnostic and repair work on brake systems and networked systems
- Identifying brake systems, analysing the functions and interactions with other systems
- Localising faults in brake systems
- Evaluating the self-diagnostics of electronic braking energy regulation systems and networked systems, linking of control units, analysing the data exchange
- Documenting the measured values, signals and fault protocols
- Making use of the opportunities offered by standard workshop diagnostic and information technology
- Encoding control units, adapting software statuses and checking data communications lines
- Observing manufacturer-specific regulations for the exchange of worn and defective components
Ready-to-use and movable functional model
- including voltagestabilised 12 V 60 A switched mode power supply
- self-sealing compressed air safety couplings on all components
- all required hose connections
- data sheets, circuit and hose diagram, manual and operating instructions.
Specifications (motor vehicle):
- Dimensions: L x W x H 2400 x 800 x 1970 mm
- Weight: approx. 570 kg
- Electrical connection: 240 V mains connection
- Compressed-air connection: Compressor with min. 10 bar and sufficient performance (L/min)
Specifications (trailer):
- Dimensions: L x W x H 110 x 800 x 1970 mm
- Weight: approx. 230 kg
