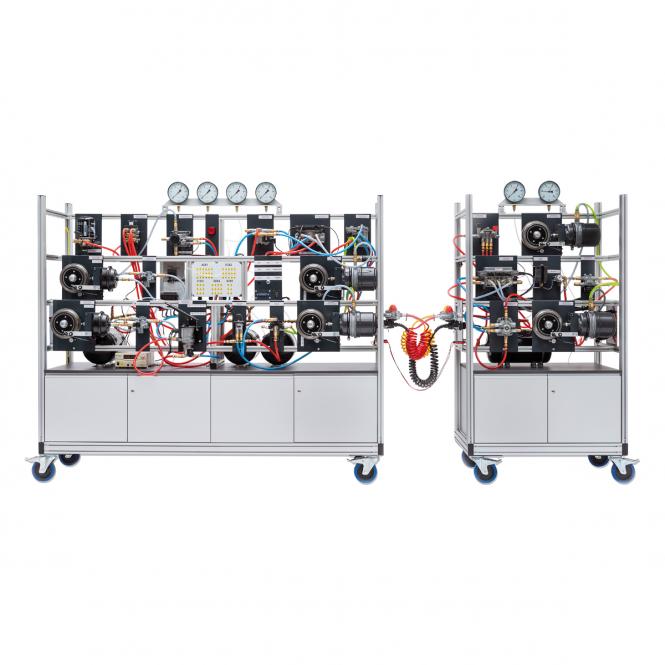

CAN bus controlled training stand with the option of simulating all operational situations in the training room. The original WABCO EBS-ECU allows real operating states to be simulated with the option of activating faults. The system can be ordered as a pure tractor unit or in combination with a trailer. Only original components are fitted in the system.
The modular system structure allows students to gradually become accustomed to the field of commercial vehicle braking systems. The flexible connections between the components ensure maximum freedom when structuring and presenting the course content concerning compressed-air brakes. The construction of the components makes the training stand future-proof, as new technologies such as ABS, TCS, EBS etc. can easily be incorporated into the existing system.
The training stand can always be modified to meet the current state of the art. The differently coloured compressed-air lines support a clearly structured test set-up. Depending on the equipment fitted, different testers or presentation programs are available. Besides the existing standard system modules, individual compilations are also possible. The size of the training stand has been matched to the size of a conventional 80 cm door. This allows the set-up to be moved around a building without causing problems so that it can be used at various locations.
Motor Vehicle:
- Air-brake systems EBS 1C with original WABCO components
- Integrated error circuit with 10 practice-oriented errors
- Measuring points on components with error circuit
- 4 large pressure gauges for function and pressure safety test (SP)
- Variable test connections with T-piece for function and test connection
- Pressure safety test (SP)
- OBD diagnostic connector
- Interface for training measuring stations
- Training documents Basic training course air brake
- Training documents EBS, ABS, ECAS
Trailer:
- Supply and brake line with spiral flexible pipes and coupling heads
- wo-circuit dual-circuit brake systems according to EG
- Electronic braking system EBS
- Electronically controlled air suspension ECAS
- Original WABCO trailer diagnostic connector
- Trailer supply cable with EBS plug
- Automotive mechatronics technician with focus on commercial vehicle technology
- Service technician
- Master Craftsman/Institute for Automotive Technician
- Performing maintenance, diagnostic and repair work on braking systems and networked systems
- Identification of braking systems, analysis of functions and interaction with other systems
- Limiting faults in braking systems
- Evaluation of self-diagnosis of electronic brake energy control systems and networked systems
- Linking of control units, analysis of data exchange
- Documentation of measured values, signals and error logs
- Utilization of the possibilities of standard workshop diagnostic and information technology
- Coding of control units, adaptation of software versions and testing of data communication lines
- Observe manufacturer-specific regulations for the replacement of worn and defective components
Immediately ready for use and mobile functional model
- incl. voltage stabilized
- 24 Volt 60 Amp switch mode power supply
- self-locking safety compressed air couplings on all components
- all required hose connections
- data sheets, wiring and tubing diagram, manual and operating instructions
Motor Vehicle:
- Power supply: 110 / 240 Volt mains connection
- Dimensions: L x W x H 2,400 x 800 x 1,970 mm
- Weight: approx. 570 kg
- Compressed air connection: Compressor with at least 10 bar and sufficient liter capacity (L/min)
Trailer:
- Dimensions: L x W x H 1,100 x 800 x 1,970 mm
- Weight: approx. 230 kg
