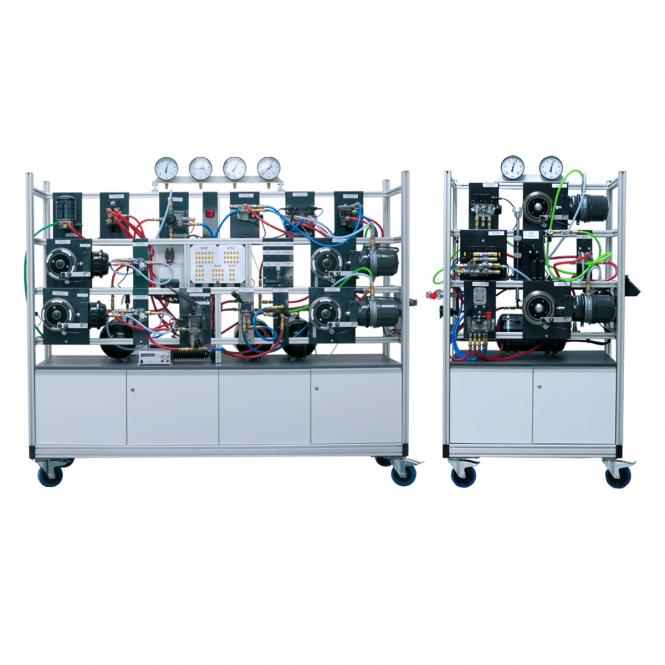

The construction of the motor vehicle compressed air brake system consists exclusively of original components from WABCO. To represent the EBS control processes, the functional model has 4 electrically driven wheel units to simulate the front and rear axles. An integrated fault circuit with radio remote control and 10 switchable, practice-oriented faults offers the possibility of reproducing realistic operating situations and practising troubleshooting. The modular system design enables gradual familiarisation with the field of commercial vehicle air brake systems. The flexible connections of the components ensure the greatest possible freedom in the design of learning situations and action-oriented teaching of the learning content. The different coloured compressed air lines support a clear, structured experimental set-up. The system has an OBD diagnostic interface for connecting suitable diagnostic devices. Another interface enables the connection of up to 14 student measuring stations.
Equipped with 4 large, folding pressure gauges and original test connections, the test steps of the function and pressure safety test SP can be clearly displayed in accordance with Annex VIII § 29 StVZO.
The original WABCO diagnostic program, WABCO test equipment and WABCO presentation programs are available as extensions and accessories.
The size has been adapted to the dimensions of a conventional 80 cm door. This means that the set-up can also be moved within a building without any problems and can be used in various locations.
Important information: For trouble-free operation of the system, a compressed air supply (compressor) with a minimum pressure of 10 bar and a sufficient litre capacity > 200 l/min is required. The pressure reservoir should be at least 100 litres in size.
Standard equipment motor vehicle:
- Air brake system EBS 1C with original WABCO components
- Integrated fault circuit with radio remote control and 10 practical faults
- Measuring points on components with fault circuit
- 4 large pressure gauges for function and pressure safety testing (SP)
- Variable test connections with t-piece for function and pressure safety testing (SP)
- OBD diagnostic connection
- Interface for student measuring stations
- Variable test connections with t-piece for function and pressure safety testing (SP)
- All compressed-air connections can be disconnected with self-sealing compressed-air couplings
- Silencers at all exhaust outlets
- Magnetic signs for component labelling
- Electrically driven wheels for displaying the control functions
- 2-stage speed control for simulation of tyre pressure loss
- Measuring points on components with fault circuit
- Training documents basic course air brake system
- Training documents EBS, ABS
- Automotive mechatronics technician specialised in heavy vehicle technology
- Service technician
- Master craftsman in the motor vehicle technician trade
- Perform maintenance, diagnostics and repair work on braking systems and networked systems.Identificating braking systems, analysing functions and interaction with other systems
- Isolating faults in brake systems
- Evaluating the self-diagnosis of electronic brake energy control systems and networked systems, linking control units, analysing data exchange
- Documenting measured values, signals and error logs
- Using the possibilities of workshop-standard diagnostic and information technology
- Coding control units, adjusting software statuses and checking data communication lines
- Observing manufacturer-specific regulations for the replacement of worn and defective components
- Carrying out a function and pressure safety test SP in accordance with Appendix VIII § 29 StVZO (German Road Traffic Licensing Regulations).
Immediately ready for use and mobile functional model
- incl. voltage-stabilised 0-30 volt 60A switching power supply unit
- self-sealing safety air couplings on all components
- all necessary hose connections
- Error circuit with radio remote control and 10 switchable errors
- Data sheets, switching and tubing diagram and operating instructions
- Dimensions (L x W x H in mm): 2,400 x 800 x 1,970
- Weight: approx. 570 kg
- Power supply: 110 / 240 volt mains connection
- Compressed air connection: Compressor with min. 10 bar and sufficient litre capacity (L/min)
