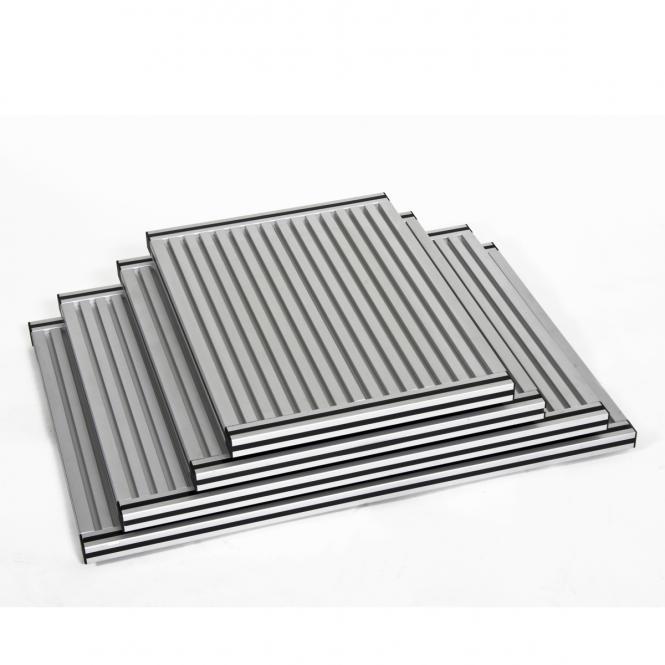

Profile Plate (T-slot)
500 x 550 mm

Assembly Kit Unmachined

Item No.: 84050

Add to wish list

Grooved plate made of 30 mm AL profile to accommodate mMS functional modules or your own superstructures.

For the flexible use of mechatronic systems, we offer base plates (T-slot plates) as well as profile trolleys with rollers. The various function modules can be easily arranged in ever new combinations on the base plates. By mounting the base plates on the mobile profile trolleys, the systems can be easily transported.

The base plate of the profile trolley is designed to accommodate our compressors or the hydraulic unit. This makes it possible to combine the functional modules, the control system and the compressed air and hydraulic supply on one trolley in a comfortable way. By stringing together several systems on the profile carriage, larger systems can be easily assembled and, if necessary, disassembled into subsystems.

Plate size: 500 mm x 550 mm x 30 mm
Kit incl. sketches
Groove width: 8 mm
Groove distance: 25 mm
For fastening components with snap-in lock or sliding nuts/hammer nuts (NU8)
Material: anodised aluminium
