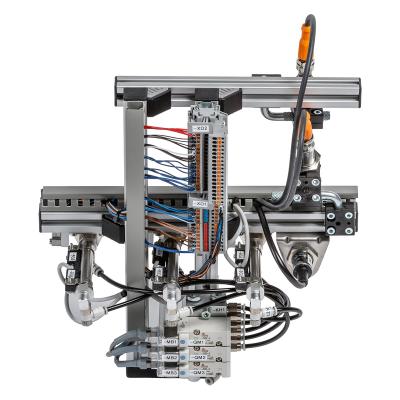

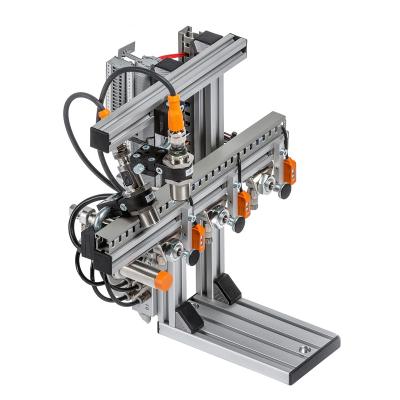

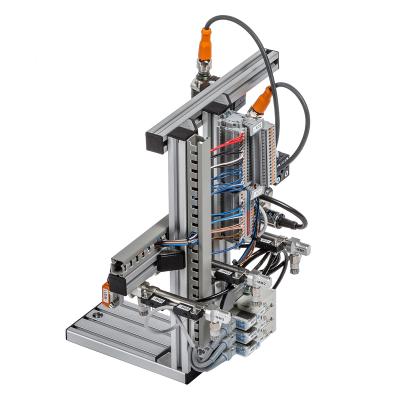

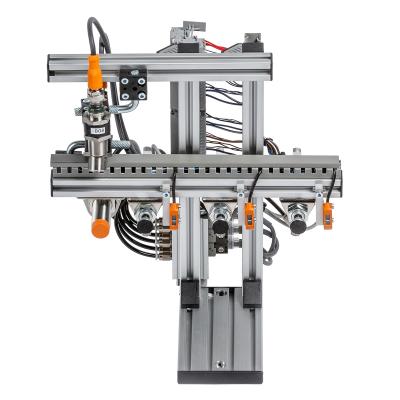

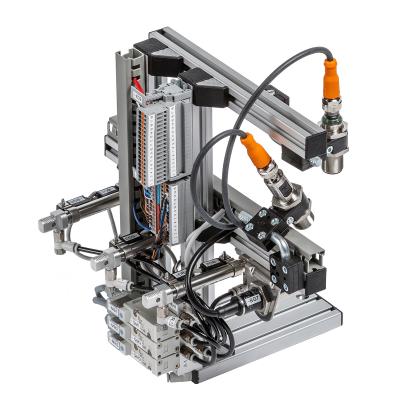

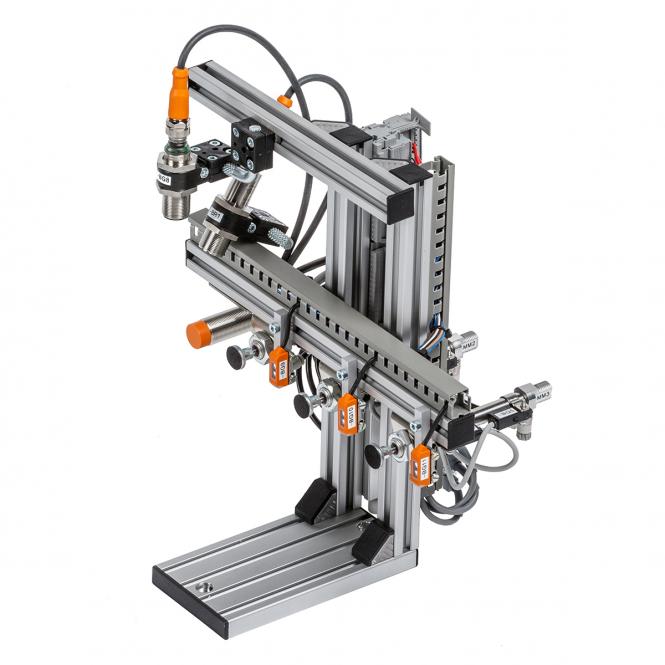

The sorting unit examines and sorts cube halves. It consists of a testing station and a sorting track with three pneumatic cylinders and three chutes. The sorting unit can be attached to the conveyor belt mMS Functional Unit. On the conveyor belt, the workpieces are guided past the sorting unit, where they are tested for material characteristics and position (orientation). These tasks are accomplished using an optical sensor, an inductive sensor and an ultrasonic sensor.
After the workpieces have been checked and classified, the conveyor belt carries them on to the discharge cylinders. The examination and the resulting possible selection or sorting are defined by the control program and are not predetermined by the assembly.
The operating pressure is 4 bar. The operating voltage is 24 VDC.
- Work plan, technical communication
- Design of electrical and pneumatic control systems
- Sensors and their application (ultrasound, optical and inductive sensors)
- PLC programming
- Commissioning of mechanical, electrical and pneumatic systems
- Troubleshooting
- Sorting processes
- Design and function of electro-pneumatic systems
Functional module as mounting kit.
Delivery incl. digital media library with
- Technical documentation
- Assembly instructions
- Multimedia content
Dimensions: 275 x 225 x 305 mm (L x W x
H)
Operating pressure: 4 bar
Operating
voltage: 24 VDC
Components:
- 6 x cylinder switch
- 1 x inductive sensor
- 4 x diffuse reflection light scanners
- 1 x ultrasonic diffuse sensor
- 3 x 5/2 way valves
- 3 x double-acting pneumatic cylinder
Requirements for the PLC:
- 11 digital PLC inputs
- 3 digital PLC outputs
- 1 analog PLC input
