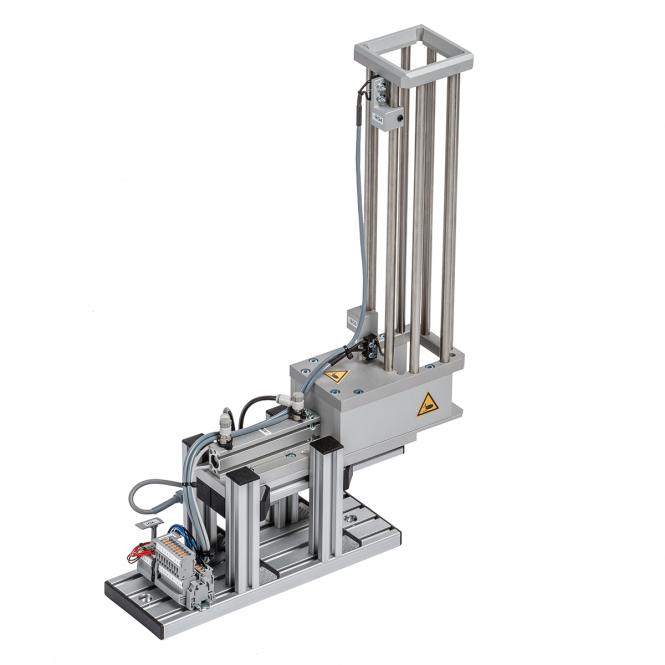

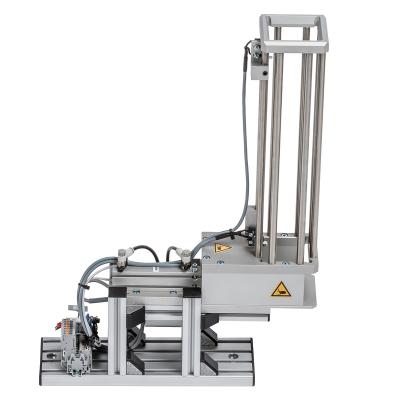

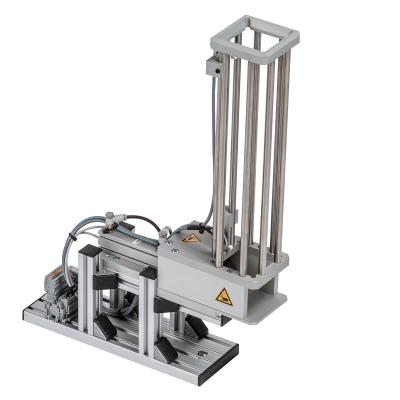

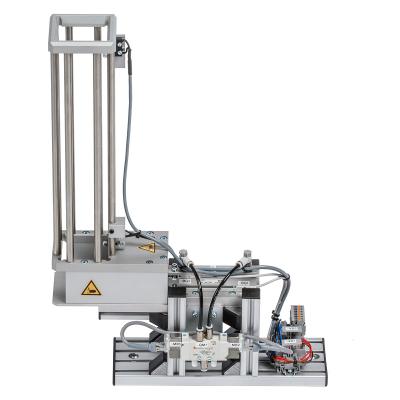

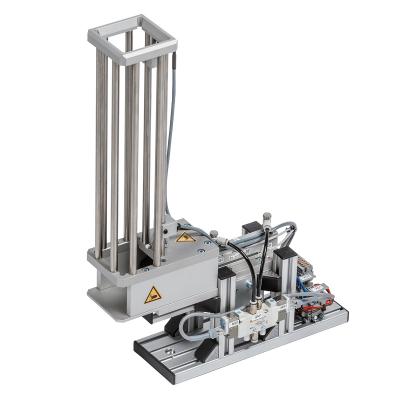

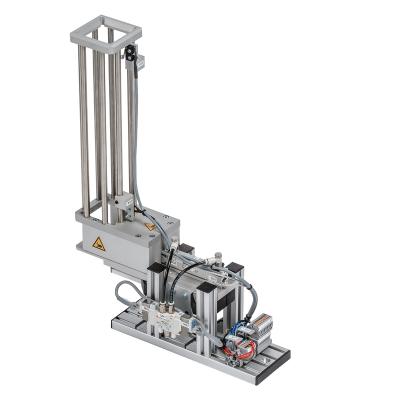

Functional Unit: Magazine Unit Type 2 - for up to 8 Workpieces euipped with pins - fully assembled
The function of the separating magazine is to separate workpieces such as
cube halves. In the storage of the separating magazine type 2 there is room for
up to eight stacked workpieces.
In contrast to the separating magazine 1, it
can hold the cube halves including inserted connecting pins.
In connection
with magazine type 1, it is thus possible to alternately separate cube halves
with pins and without pins.
The operating pressure is 4 bar, the operating voltage 24 VDC.
- Work planning, technical communication
- Testing, marking and identification
- Manual and mechanical machining, separating and reshaping
- Assembly work
- Design of electrical control systems
- Design of pneumatic control systems
- PLC programming
- Commissioning of mechatronic/electro-pneumatic systems
- Troubleshooting
- Automation of work processes
- Design and function of electro-pneumatic systems
Functional module as finished device
Delivery incl. digital media library with
- Technical documentation
- Assembly instructions
- Multimedia content
Dimensions: 100 x 300 x 420 mm (L x W x
H)
Operating pressure: 4 bar
Operating
voltage: 24 VDC
Components:
- 2 x cylinder switch
- 1 x diffuse sensor
- 2 x microswitches
- 1 x 5/2 way valve
- 1 x double-acting pneumatic cylinder
Requirements for the PLC:
- 5 digital PLC inputs
- 2 digital PLC outputs
