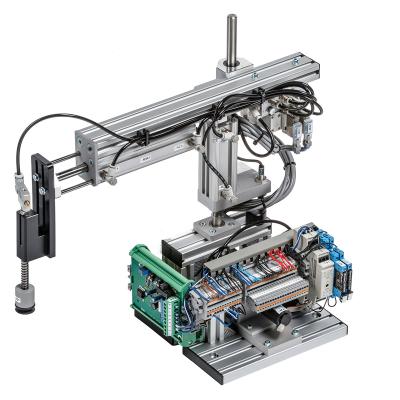

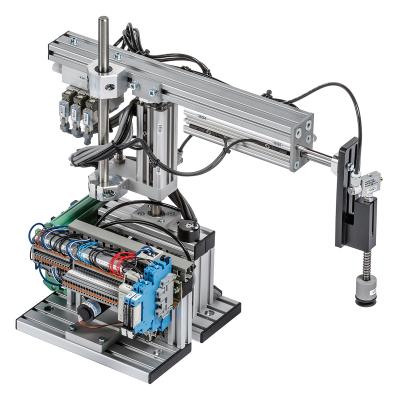

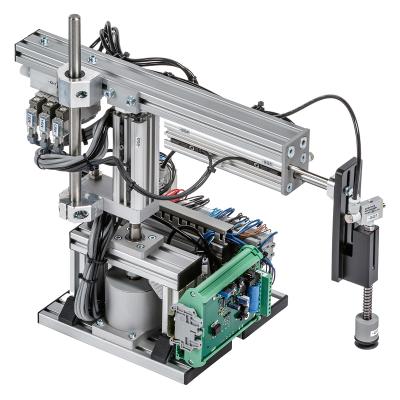

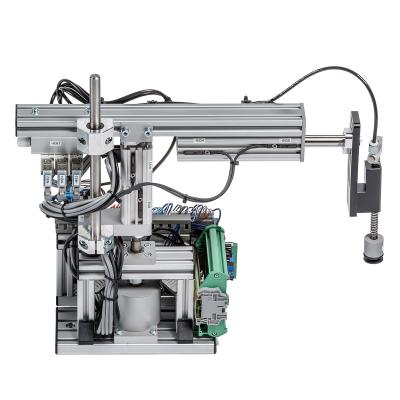

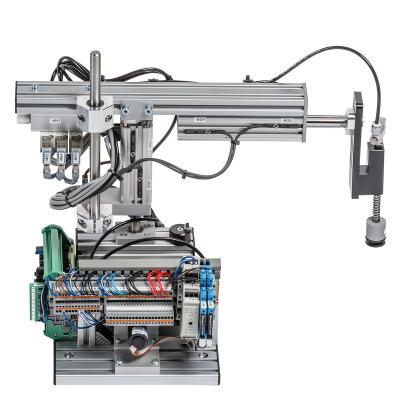

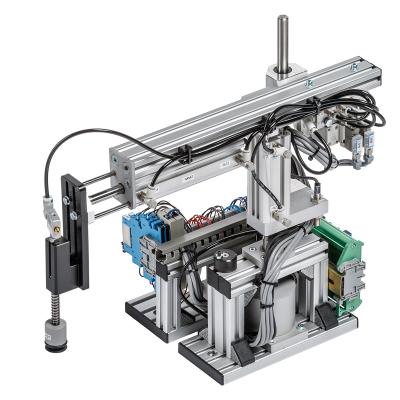

The handling unit implements what are called pick-and-place applications, in which workpieces are picked up from one location and placed at another one. The three-axis Handling Unit covers a work area of 270°. In this work area, any position can be approached. The drive uses a DC motor with integrated rotary encoder. Both the vertical and the horizontal axis are driven by distortion-safe pneumatic cylinders. In order to hold the workpieces, the manipulator is equipped with a vacuum suction device.
Combined with other mechatronic Functional Units, the Handling Unit can, for example, do the following:
- Pick up workpieces from a belt conveyor and feed them to a press / an Assembly Unit for further processing
- Pick up workpieces from a belt conveyor and transfer them to an ASRS for storage
- Work plan, technical communication
- Testing, marking and identification
- Manual and mechanical machining, separating and reshaping
- Assembly work
- Design of electrical control systems
- PLC programming
- Commissioning of mechanical, electrical and pneumatic systems
- Troubleshooting
- Automation of work processes
- Design and function of electro-pneumatic systems
- Vacuum generation
- Pick-and-Place tasks / handling of material
Functional module as mounting kit.
Delivery incl. digital media library with
- Technical documentation
- Assembly instructions
- Multimedia content
Dimensions: 355 x 215 x 365 mm (L x W x
H)
Operating pressure: 4 bar
Operating
voltage: 24 VDC
Components:
- 4 x cylinder switch
- 1 x inductive sensor
- 1 x pressure switch
- 3 x 5/2 way valve
- 2 x double-acting pneumatic cylinder
- 1 x 24 V direct current gear motor
- Encoder on motor
- 1Q Speed controller
Requirements for the PLC:
- 8 digital PLC inputs of which 2 fast counters
- 8 digital PLC outputs
- 1 analog PLC output
