Function Unit Handling Unit Manufacturing Kit

Function module Handling Unit
Manufacturing Kit

Item No.: 69516

Add to wish list

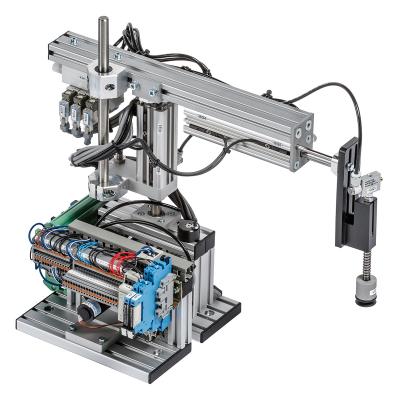

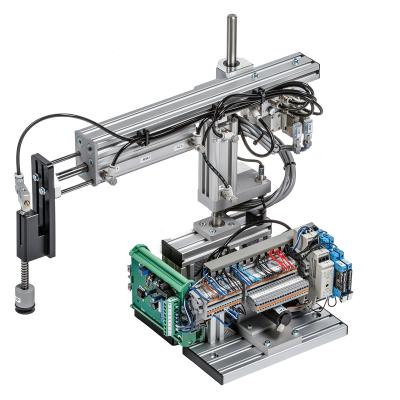

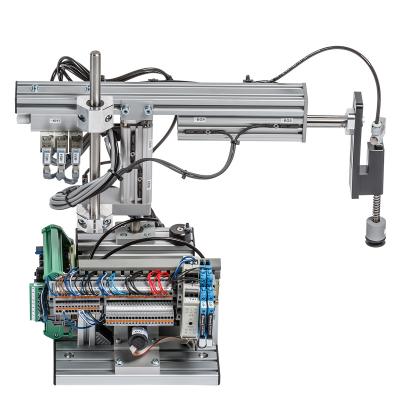

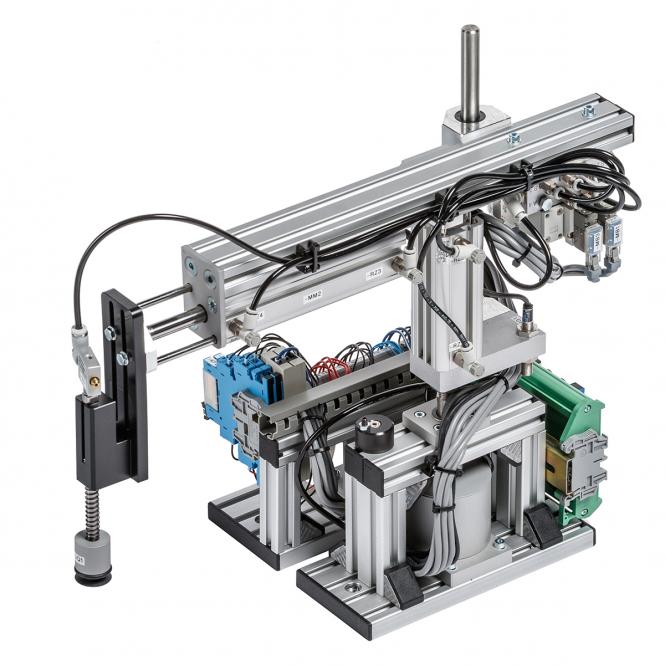

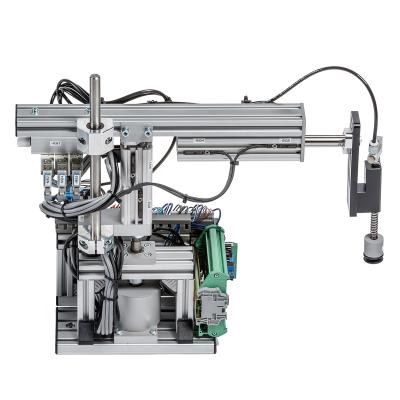

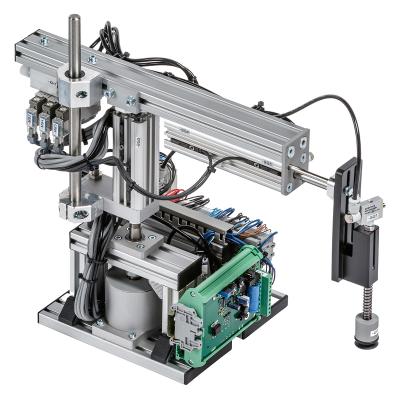

The Handling Unit implements what are called pick-and-place applications, in which workpieces are picked up from one location and placed at another one. The three-axis Handling Unit covers a work area of 270°. In this work area, any position can be approached. The drive uses a DC motor with integrated rotary encoder. Both the vertical and the horizontal axis are driven by distortion-safe pneumatic cylinders. In order to hold the workpieces, the manipulator is equipped with a vacuum suction device.

Combined with other mechatronic Function modules, the Handling Unit can, for example, do the following:

Pick up workpieces from a belt conveyor and feed them to a press / an Assembly Unit for further processing
Pick up workpieces from a belt conveyor and transfer them to an ASRS for storage

.md

Work planning, technical communication
Testing, marking and labelling
Manual and mechanical machining, cutting and forming
Assembly work
Structure of electrical control systems
PLC programming
Commissioning of mechanical, electrical and pneumatic systems
Troubleshooting
Automation of work processes
Structure and function of electropneumatic systems
Vacuum generation
Pick-and-place tasks/material handling

Function module as a Manufacturing Kit

The Function module assembly is supplied as a kit with unprocessed material including accessories. For the Function module, the mechanical processing (partly by machine) must be carried out according to the specifications of the mMS media centre before further project steps can be started.

Dimensions: 355 x 215 x 365 mm (L x W x H)
Operating pressure: 4 bar
Operating voltage: 24 VDC
Components:
