Functional Unit: Valve Unit

Functional Unit: Valve Unit

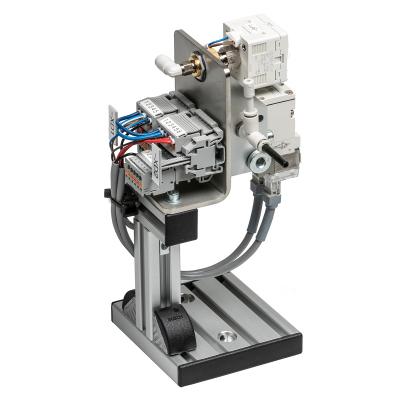

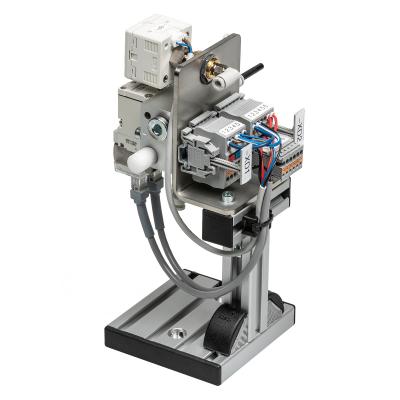

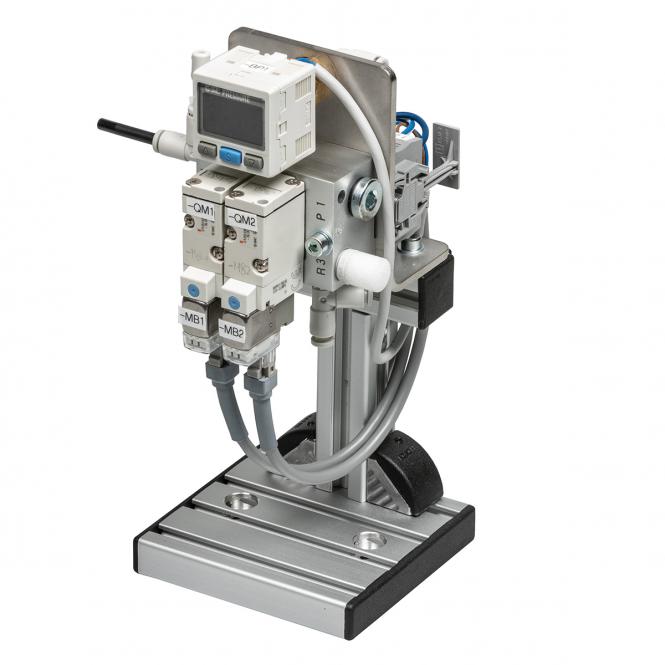

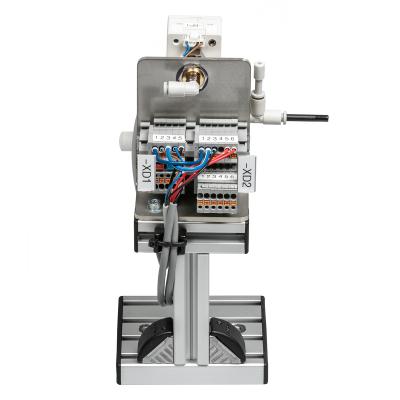

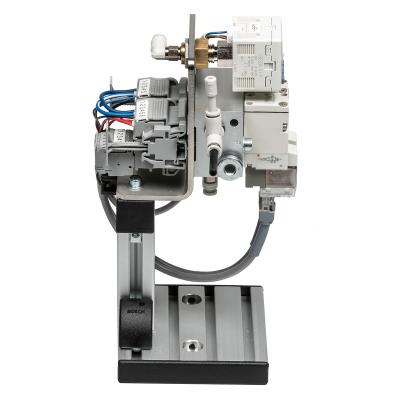

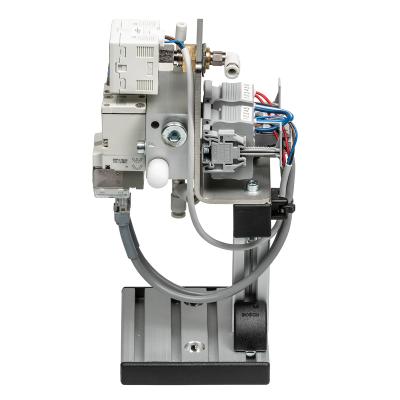

Fully Assembled

Item No.: 69505
Add to wish list

The valve unit controls the compressed air for a pneumatic system by enabling or stopping the compressed air feed. The Valve Unit is electrically controlled.

  • Work plan, technical communication
  • Assembly work
  • Preparation of compressed air for use in industrial systems
  • Design and function of electro-pneumatic systems

Functional module as finished device.

Delivery incl. digital media library with

  • Technical documentation
  • Assembly instructions
  • Multimedia content

Dimensions: 100 x 110 x 190 mm (L x W x H)
Operating pressure: 4 bar
Operating voltage: 24 VDC
Components:

  • 1 x digital precision pressure switch
  • 2 x 3/2 way valves


Requirements for the PLC:

  • 1 digital PLC input+
  • 2 digital PLC outputs
