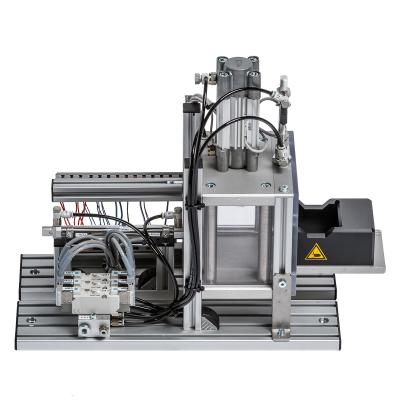

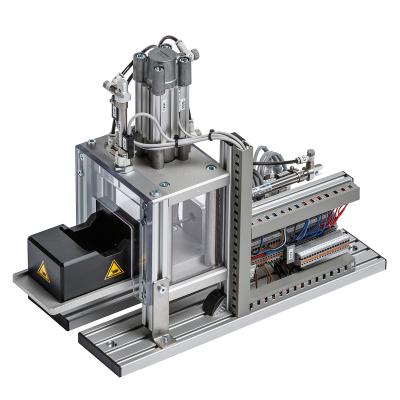

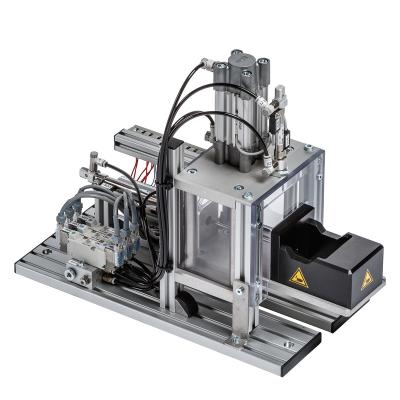

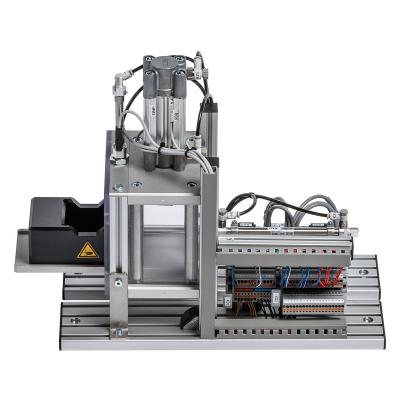

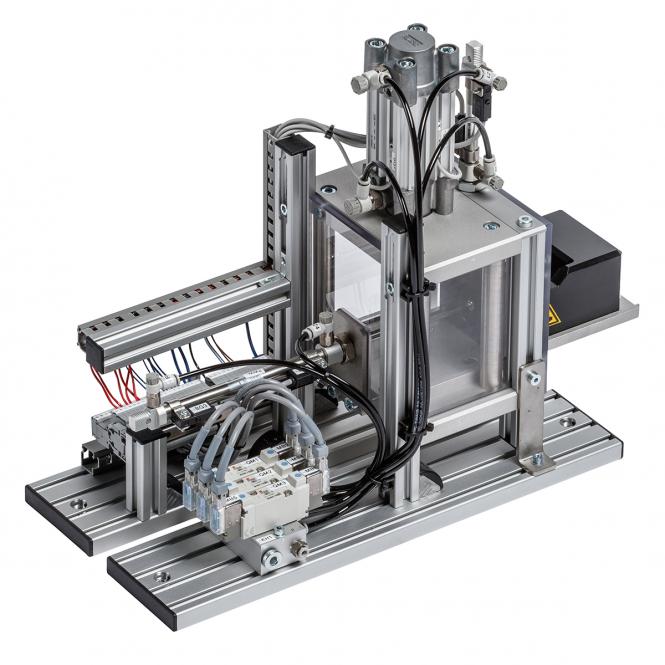

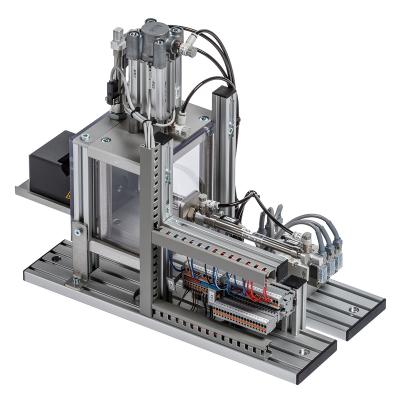

The assembly unit is designed for assembling or attaching workpieces. After inserting the workpieces, the workpiece holder transports the parts to be processed to the workspace. Then, the safety door closes, and the joining cylinder begins extending. After the assembly of the cube halves, the safety door opens. The joint workpieces are pushed out of the workspace and are ready for further transport.
Due to the safety door, the Assembly Unit ha fully enclosed workspace during processing. However, the safety walls made of plexiglmake it possible to observe the joining procedure.
The operating pressure is 4 bar. The operating voltage is 24 VDC.
- Work plan, technical communication
- Testing, marking and identification
- Manual and mechanical machining, separating and reshaping
- Assembly work, joining
- Design of electrical control systems
- PLC programming
- Commissioning of mechanical, electrical and pneumatic systems
- Troubleshooting
- Automation of work processes
- Design and function of electro-pneumatic systems
Functional module as finished device.
Delivery incl. digital media library with
- Technical documentation
- Assembly instructions
- Multimedia content
Dimensions: 180 x 410 x 315 mm (L x W x
H)
Operating pressure: 4 bar
Operating
voltage: 24 VDC
Components:
- 7 x cylinder switch
- 3 x 5/2 way valves
- 3 x double-acting pneumatic cylinder
Requirements for the PLC:
- 7 digital PLC inputs
- 6 digital PLC outputs
