With the new learning board for engine management and hybrid engine starters, we offer you a teaching system for the practical teaching of contents of electronic control of electric motors.
The motor management and hybrid motor starter offer a variety of monitoring and configuration options to operate electric motors in a cost-effective and simple way.
The basics for this widely used technology can be taught with this teaching system.
Switching the motor on and off with the hybrid motor starter
Right/left
rotation with the hybrid motor starter
Protecting man and machine
Motor
control with hybrid motor starter and PLC
Basic engine management
functions
Reversing the engine with the engine management system
Overload
protection with motor management and hybrid motor starter
Protect the
application with motor management and hybrid motor starter
Example exercises
conveyor belt, water pump and electric cylinder
To carry out the experiments,
additional learning boards are required!
Information can be found under "suitable" or under details.
In addition to the familiarization with modern motor controls with this learning board, further knowledge important in this context is deepened.
- Overload and underload of motors
In addition to a suitable asynchronous motor, a suitable device is
therefore required for monitoring under and overloading of the motor.
We recommend the following components from our range:
- 52717 Asynchronous motor
- 52754 Brake unit
- 52753 Control unit
Note: The teaching system for drive technology (Teaching System Electrical Machines 52821) also offers a large number of experiments on different motor types and thus serves to provide a complete introduction to the fundamentals of this core topic of electrical engineering.
- Differences between conventional and electronic control
To complete the experiments, or for control and operation, further assemblies are required. We recommend the following learning boards from our product range:
- 98164 Learning board for operation and thermistor simulation (*)
- 98198 Learning board power supply 24 V DC (*)
- 98144 Learning board el. overload relay (*)
- 98146 Learning board motor protection switch (*)
- 98155 Main contactor (+), 3 pieces are needed!
- 98152 Push button (*)
- 98153 Switch (*)
Note: Some learning boards from the teaching system VPS (Electrical Machines - VPS - Learning Board Set 98199) are also required for experiments with motor management and hybrid motor starters (marked with an asterisk). Furthermore, the conventional control of motors (connection-programmed control VPS) serves as a basis for the experiments and is used in the experiment instructions for repetition or comparison (marked with "plus").
- Integration of emergency stop, emergency stop, PL level
We recommend the learning boards for these exercises:
- 58155 EDISONS RT7B Learning Board Universal Safety Relay
- 58164 EDISONS INCA1 Learning board Control unit for action in emergency (shut-off/emergency stop)
Note: The EDISIONS teaching system for machine safety (EDISONS Basic Set 58140) can also be used to teach you the basics of this subject area.
- Control via PLC
PLC technology is also used to complete the possibilities for controlling and monitoring drive systems.
For this we recommend:
- 58164 Learning board LOGO! 8
Note: For basic knowledge of the subject area PLC technology you will find an extensive selection of products.
- Electronics technician for industrial engineering
- Electronics technician in automation technology
- Electronics technician for building and infrastructure systems
- Electronics technician for machines and drive technology
- Electronics technician in energy and building services engineering (HW)
- Mechatronics technician
This teaching system is suitable for use in learning field 8.

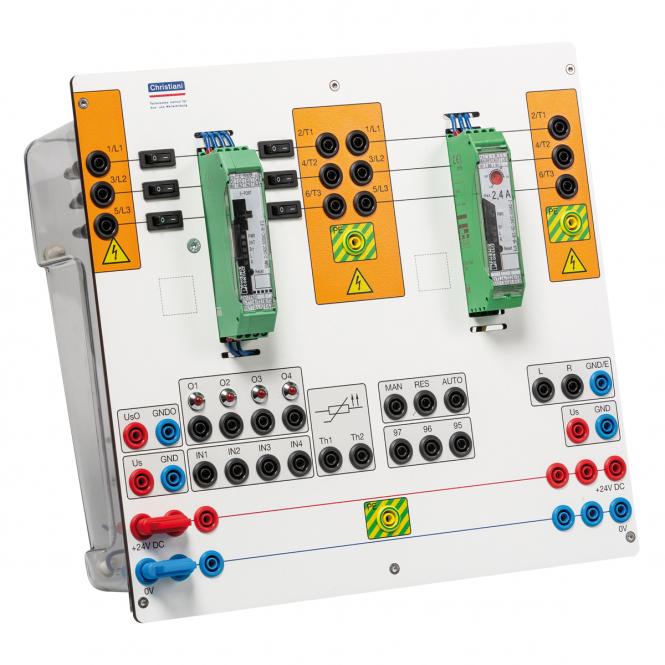

The learning board includes motor management and hybrid motor starter:
Electronic engine management module
- Rated control supply voltage: 24 V DC
- Power consumption: < 33 mA
- Rated operational voltage: 500 V AC
- Operating voltage range: 42...575 V AC
- Rated operational current: 5 A AC ext. converter
- Rated frequency: 50...60 Hz
Hybrid motor starter (CONTACTRON)
- Rated control circuit voltage: 24 V DC
- Rated operational voltage: 500 V AC
- Operating voltage range: 42...575 V AC
- Switching capacity (feedback input): 3 A (230 V, AC15), 2 A (24 V, DC13)
Dimensions:
- Motor management and hybrid motor starter learning board: 315 x 297 x 135
mm (W x H x D)
Weights:
- Learning board for engine management and hybrid engine starter: approx. 2.0 kg
With the learning board for motor management and hybrid motor starters, or the corresponding accessories, experiments can be carried out on the following topics:
- Switching the motor on and off with the hybrid motor starter
- Right/left rotation with the hybrid motor starter
- Protecting man and machine
- Motor control with hybrid motor starter and PLC
- Basic engine management functions
- Reversing the engine with the engine management system
- Overload protection with motor management and hybrid motor starter
- Protect the application with motor management and hybrid motor starter
- Example exercises conveyor belt, water pump and electric cylinder
- 1x jumper plug red without centre tap
- 1x jumper plug blue, without centre tap
- 1x USB data cable for engine management
- 1x ILS software, data sheets and manuals
