The new teaching system EDUSAFE from Christiani, supports you optimally in imparting knowledge about machine safety. It is the ideal way to prepare your trainees, pupils, students or employees for the new requirements on safety functions for machines and machine systems in the industrial sector according to DIN EN ISO 13849-1 for use with the Machinery Directive 2006/42/EC. Of course, the EDUSAFE training system can also be used to set up and test safety functions using the categories according to DIN EN 954-1.

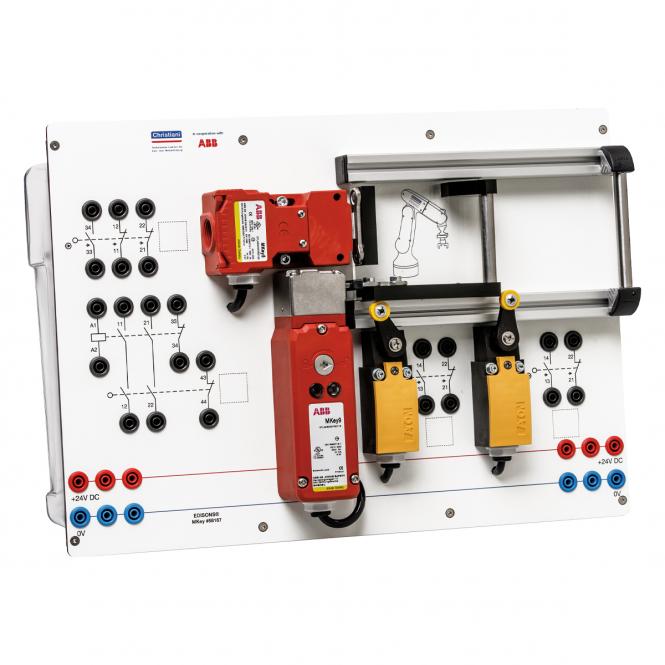

EDUSAFE MKEY learning board model of a sliding door with two attached roller lever position switches, one position switch with separate actuator and one position switch with guard locking (spring force interlocked).
- Electronics technician for automation technology: Learning fields 3, 5, 6, 7, 8, 9, 10, 11
- Electronics technician for industrial engineering: Learning fields 2, 3, 7, 8, 11
- Mechatronics technician: Learning field 3, 8, 11, 12
- Operating voltage: 24 V DC
- Dimensions: approx. 420 x 300 x 220 mm
- Weight: approx. 1,5 kg
- 1 x EDUSAFE learning board MKEY
