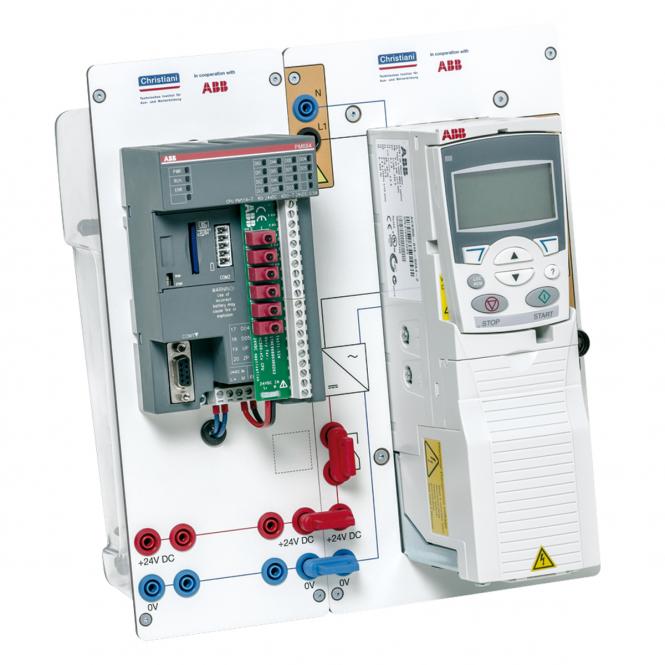

Training Board Set PLC and Frequency Inverter

Training Board Set PLC and Frequency Inverter

Item No.: 98205
Add to wish list

PLC and frequency converter
Programmable control and monitoring of three-phase motors

With this learning board set you can start a three-phase motor and operate it speed-controlled in a few minutes. The package includes the finished user program and all necessary accessories. Both the programming with function blocks and the visualisation of the application are supplied ready-made, so that the starter kit can be put into operation quickly. The starter kit is built up with the ABB compact controller AC500-eCo and the ABB frequency converter ACS355 (up to 0.37 kW). The AC500-eCo is an economical entry-level PLC for stand-alone solutions, but can also control up to seven drives. Thanks to the integrated digital and analog inputs and outputs, the PLC does not require any additional modules for this application. The PLC is easy to program and supports six programming languages including CFC.

  • PLC with SD card slot for transferring programs
  • Connection between PLC and frequency converter via field bus module
  • Supply voltage: 230 VAC/ 50 Hz single-phase for the inverter
  • Frequency converter with removable comfort control panel
  • With Engineering Tool PS501 for six programming languages, integrated visualization and configuration of the entire system, including fieldbuses and networking
