Taining Board POWER

Item No.: 43316
Add to wish list

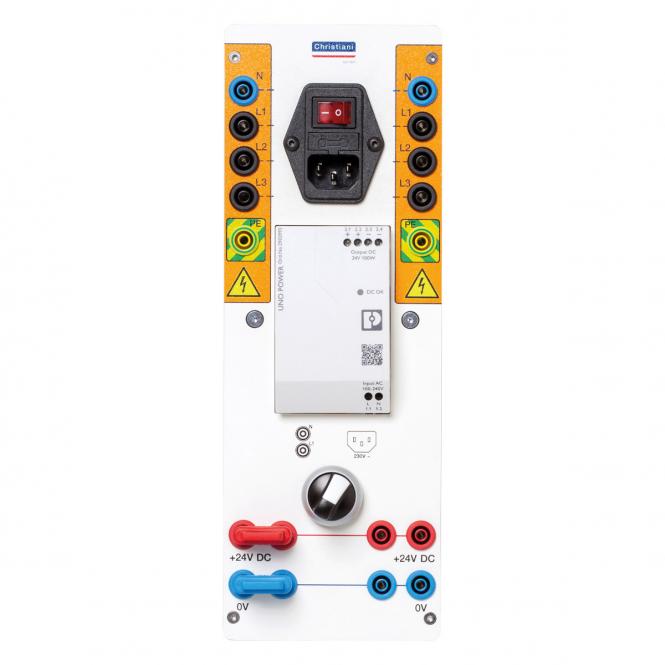

The new Power training board lives the modular approach. The training boards for power supply known from the VPS and EDUSAFE teaching systems have been combined here and will in future supply the power for Christiani's own training board systems.

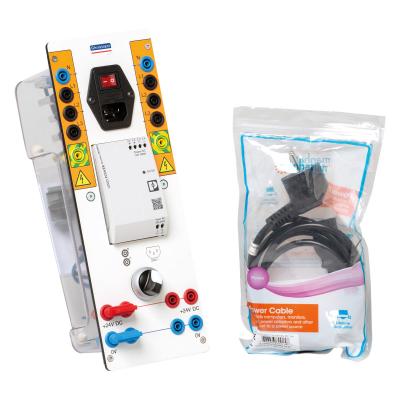

On the input side, you have the choice of feeding in the mains voltage via 4 mm safety laboratory sockets, or via a mains cable with a C13 plug.

Suitable for all Christiani training boards and many more.

  • Reprocessed power supply unit from Phoenix Contact.
  • Selection of mains supply via changeover switch.
  • Intuitive design and easy to integrate into current or new learning situations.

Technical data of the power supply:

  • Power supply UNO-PS/1AC/24DC/100W
  • Input voltage: 85 V AC ... 264 V AC
  • Current consumption: 2.1 A (120 AC), 0.95 A (230 V AC)
  • Output voltage: 24 V DC
  • Output current: 4.2 A

Technical data of the training board:

  • 4 mm laboratory sockets for feeding in mains voltage
  • C13 socket for alternative use
  • Change-over switch definition input side
  • Christiani voltage bus 4 mm, for easy connection of further training boards
  • Format DIN 0.5 A4 Dimensions: approx. 105 x 297 x 95 mm
  • Weight: approx. 1 kg
