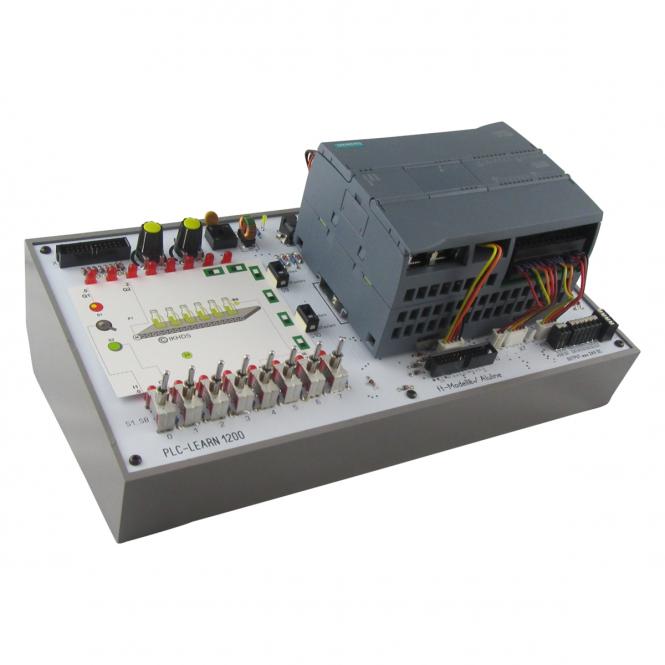

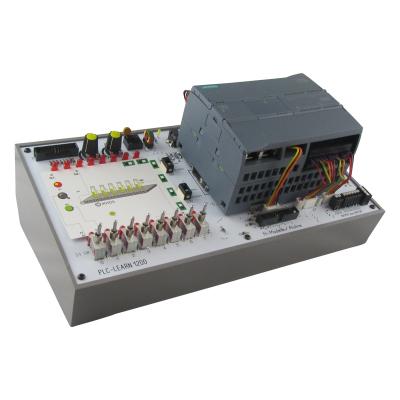

Training system PLC-Learn 1200 without CPU 1215C
The training system "PLC-Learn 1200 is built on a plastic housing. There are
8 push/latch switches for signal input,
and for analog value output 2
potentiometers for voltage adjustment (e.g. actual/setpoint) 0-10V/DC 10mA are
integrated.
The signal output as well as the signal input is indicated by 8
LEDs (status) each.
Learning cards can be placed on the field "Learning
cards" and tested with the supplied 32 tasks with suggested solutions.
The 32 supplied tasks with solutions are structured according to the principle of "easy to difficult" and are designed for training as well as for the examination preparation e.g. for the apprenticeship occupation "energy electronics technician specializing in operating technology" (CPU 1215C) very well suitable.
Furthermore, it is possible to plug on plug-on modules, such as motor, traffic light, cube etc. as well as models on a 24-pole interface connector.
The 26-pin interface can be directly connected to fischertechnik models such as cycle line with 2 processing machines, conveyor belt etc.
8 external inputs as well as 8 external outputs can be fed to the CPU via
connection lines on the spring-loaded terminals (10A, up to nominal cross
section 1.5qmm) attached to the board.
Furthermore, 2 analog inputs as well
as 2 analog outputs of the CPU can be fed to the CPU via connection
lines.
Switching from current output 0...20mA to voltage output 0...10V is
possible via a slide switch.
An extension of the mounting rail for the installation of further modules e.g. LOGO!8 is possible.
