With the new PLC training board series, our already existing concept of automation is optimally developed further.
By using products as well as components that are already used in our mechatronic models, we create a high level of compatibility with our modular mechatronics system. Via the interface sockets used here, you can quickly establish a connection to further devices, function modules or simulations.
The modularity of the training boards means that they can be quickly integrated into everyday teaching or training.
You want to teach Profinet? No problem, connect the PLC with the PN module and get into the decentralised periphery.
Do you want IO-Link? Or cyber security? With Christiani, you don't have to make a decision; modularity and flexibility are part of our programme. This means that the new training boards can of course also be combined with the already familiar Christiani training boards.

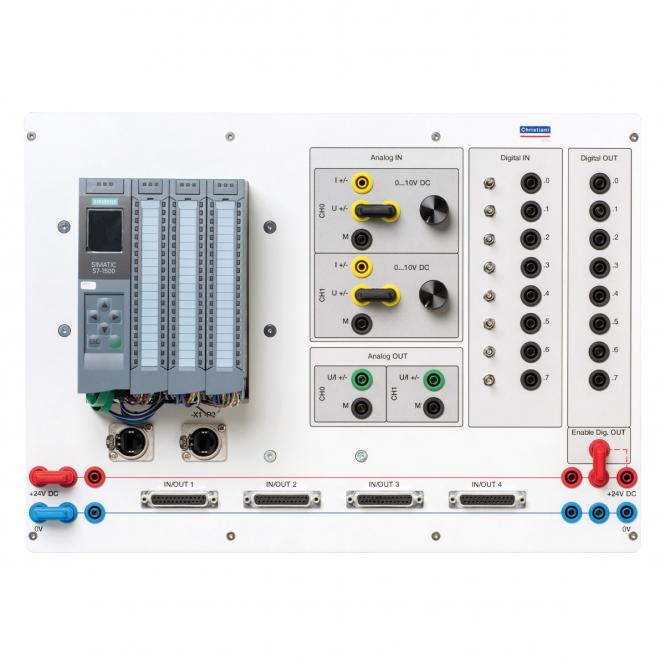

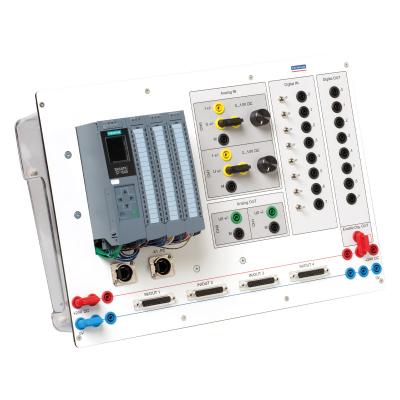

Siemens control S7-1512C didactically prepared and quickly available on a training board:
- For wiring exercises, an input & output byte routed to 4 mm safety lab sockets.
- The input byte is equipped with toggle switches.
- 2 analogue inputs & outputs each routed to 4 mm safety lab jacks.
- Two RJ45 sockets are placed on the front of the training board for ergonomically easier and quicker connection of network participants.
- The design of the front board has been optimised for intuitive use. Clear labelling, visual boundaries and sensible colours help you to find your way around quickly.
- One input and one output byte each routed to SUB-D sockets. Facilitates quick connection to external devices or additional training boards. Build your own control concept in no time.
- Ideal for getting started quickly with the teaching unit, requires little wiring and can be expanded.
Technical data of the PLC:
- SIMATIC S7-1500 Compact CPU 1512C-1 PN
- CPU with display
- Central module with working memory 250 KB for program and 1 MB for data
- 32 digital inputs
- 32 digital outputs
- 5 analogue inputs
- 2 analogue outputs
- 6 high-speed counters
- Integrated PROFINET IO interface with 2 ports for line and ring structure
- PROFINET IO controller/IO device
- Integrated technology functions: motion, control, counting & measuring
- Integrated system diagnostics
- 4-stage protection concept
- 48 ns bit performance
- Front connector included
- SIMATIC Memory Card included
Technical data of the training board:
- 8 x digital input 4 mm, incl. toggle switch
- 8 x digital output 4 mm
- 2 x analogue input 4 mm, incl. potentiometer
- 2 x analogue output 4 mm
- 4 x SUB-D 25pol SUB-D1 = 8x DI, 8x DO, 1x AI, 1x AO SUB-D2 = 8x DI, 8x DO, 1x AI, 1x AO SUB-D3 = 8x DI, 8x DO, 1x AI SUB-D4 = 8x DI, 8x DO, 1x AI
- 2 x Profinet RJ45
- Christiani voltage bus 4 mm, for easy connection of further training boards
- Operating voltage 24V DC
- Format DIN A3 Dimensions: approx. 420 x 297 x 110 mm
- Weight: approx. 3 kg

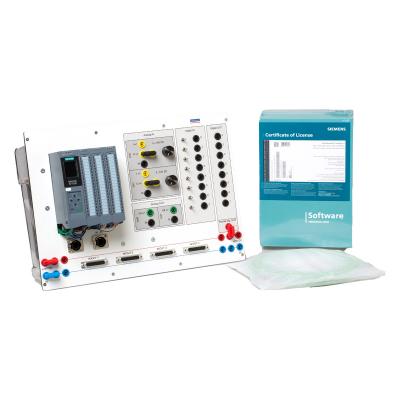

- Including 1x S7 STEP7 Professional

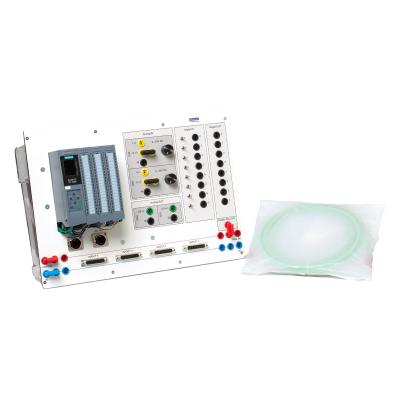

- 1 x Training Board 1512C
- 2 x jumper 19 mm red
- 1 x jumper 19 mm blue
- 2 x jumper 19 mm black
- Ethernet cable
- SIMATIC S7 Memory Card 24 MB
- 1 licence TIA Portal (SIMATIC STEP 7 Professional Software for Training)
- Technical documentation
