Training Board IO-Link SmartLight

Training Board IO-Link SmartLight

Item No.: 43319
Add to wish list

With the new PLC training board series, our already existing concept of automation is optimally developed further.

By using products as well as components that are already used in our mechatronic models, we create a high level of compatibility with our modular mechatronics system. Via the interface sockets used here, you can quickly establish a connection to further devices, function modules or simulations.

The modularity of the training boards means that they can be quickly integrated into everyday teaching or training.

You want to teach Profinet? No problem, connect the PLC with the PN module and get into the decentralised periphery.

Do you want IO-Link? Or cyber security? With Christiani, you don't have to make a decision; modularity and flexibility are part of our programme. This means that the new training boards can of course also be combined with the already familiar Christiani training boards.

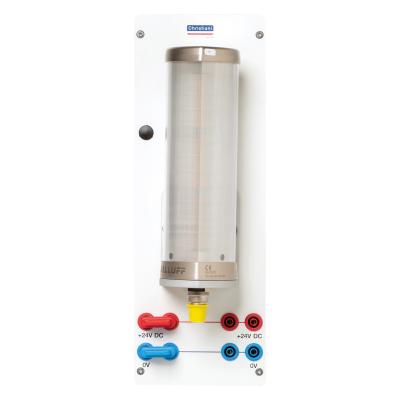

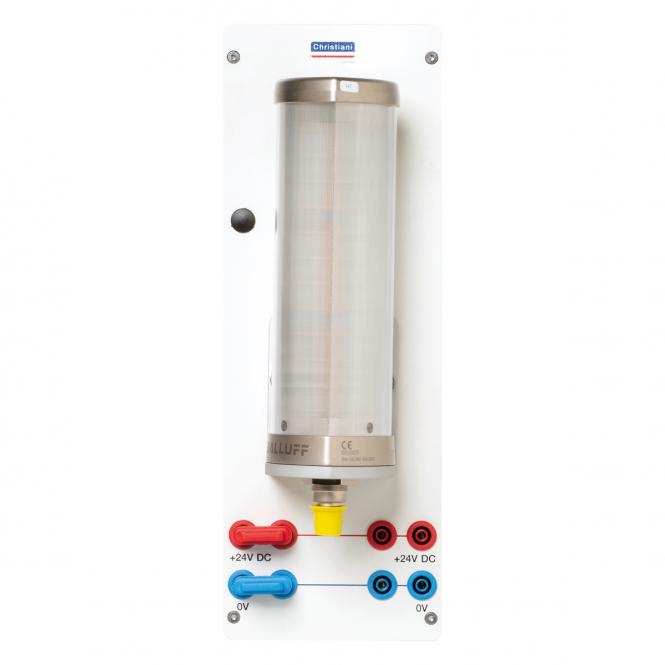

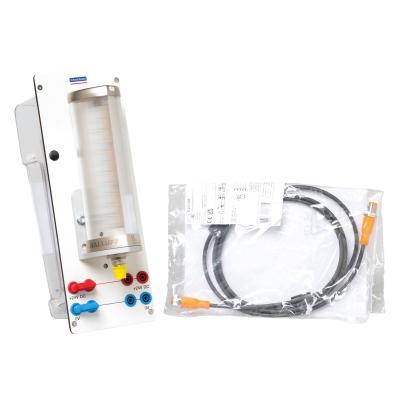

  • Training board with IO-Link SmartLight
  • Offers the option of integrating an intelligent signal light into the learning scenario and controlling it via IO-Link.
  • Requires an IO-Link master for operation.
  • The freely programmable light can be used to visually indicate any system status.
  • Configure sensible light combinations and make everyday life easier for a system operator.
  • This training board mirrors the signal column of the mMS Sorting System Compact 4.0 and can be programmed in the laboratory environment.
  • Requires an IO-Link master for operation

Technical data IO-Link SmartLight:

  • IO-Link 1.1
  • Operating voltage: 18 ... 30.2 V DC
  • Connection: M12 x 1 plug, 4-pin
  • Segments: 3
  • Predefined colours: yellow, white, green, blue, red, orange, configurable
  • Function display: chaser mode, level mode, segment mode, flexi mode
  • Setting option: function display

Technical data training board:

  • Operating voltage: 24 V DC -Format DIN 0.5 A4 Dimensions: approx. 105 x 297 x 150 mm
  • Weight: approx. 0.7 kg
  • Christiani voltage bus 4 mm, for easy connection of further training boards
