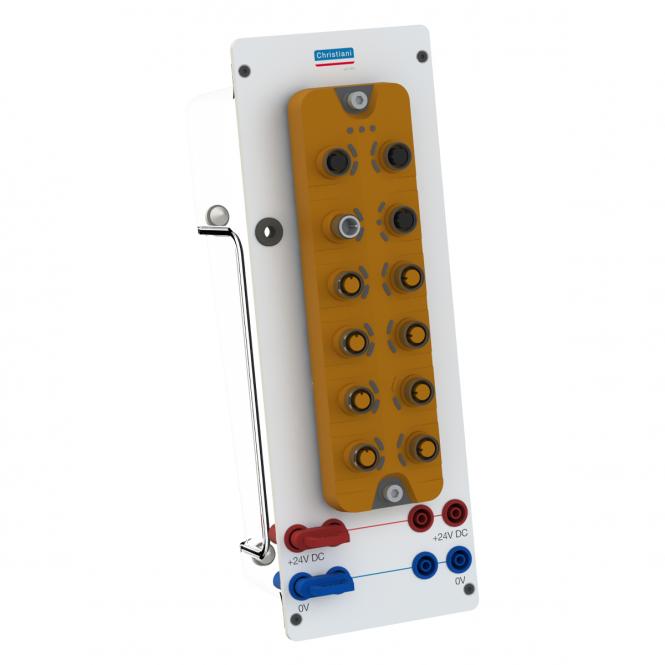

Training Board IO-Link Master

Training Board IO-Link Master
8 Ports

Item No.: 43321
Add to wish list

With the new PLC training board series, our already existing concept of automation is optimally developed further.

By using products as well as components that are already used in our mechatronic models, we create a high level of compatibility with our modular mechatronics system. Via the interface sockets used here, you can quickly establish a connection to further devices, function modules or simulations.

The modularity of the training boards means that they can be quickly integrated into everyday teaching or training.

You want to teach Profinet? No problem, connect the PLC with the PN module and get into the decentralised periphery.

Do you want IO-Link? Or cyber security? With Christiani, you don't have to make a decision; modularity and flexibility are part of our programme. This means that the new training boards can of course also be combined with the already familiar Christiani training boards.

  • Training board with IO-Link master
  • Offers the possibility to integrate intelligent sensors and actuators into the learning scenario.
  • Learn how the IO-Link protocol works and use the communication system in your learning lab.
  • Can be used with all common IO-Link components.

Technical data IO-Link master:

  • Separation between automation and IT network For the connection of up to eight IO-Link devices
  • Reliable transmission of machine data, process parameters and diagnostic data to the controller
  • With PROFINET and separate MQTT JSON interface
  • Operating voltage: 20...30 V DC
  • Current consumption: 300 ... 3900 mA
  • Inputs and outputs: 16; (configurable)
  • Communication interface: Ethernet, IO-Link
  • Protocol: JSON, MQTT

Technical data training board:

  • Operating voltage: 24 V DC
  • Format DIN 0.5 A4 Dimensions: approx. 105 x 297 x 130 mm
  • Weight: approx. 0.9 kg
  • Christiani voltage bus 4 mm, for easy connection of further training boards
