PLC Trainer S7-1512C
with PN+DP

Item No.: 99513

Enter the world of the new innovative SIMATIC S7-1500 control systems and prepare your students and trainees for the next generation of ground-breaking control systems made by the German market leader.

Ideal for practical PLC teaching. The Christiani PLC training racks not only allow you to impart programming knowledge to your pupils and trainees but also to enable them to collect practical experience in working with PLC hardware.

The concept

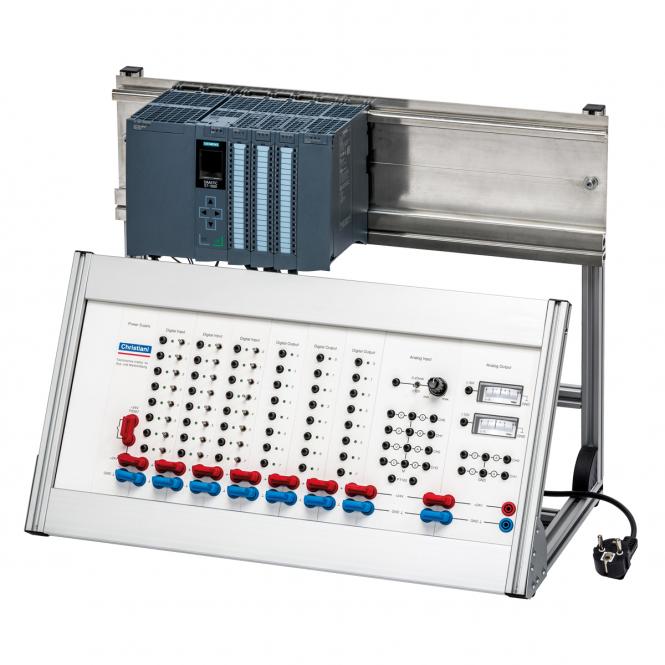

The aim of developing this innovative PLC training equipment was to reproduce the modularity of the S7 components in terms of their application. To achieve this, appropriate connection assemblies were developed for the prevalent S7 assemblies. Each pair is mounted together under each other on the table-top support. The S7 assemblies are at the top on the original Siemens assembly carriers, with the connection modules underneath in the profile frames which are ergonomically inclined. Electrical connection is made exclusively between each of the partnering units, that is to say from above to below.

Power is supplied to the individual pairs via bridge connectors on the front of the connection assemblies, from left to right. This modular setup enables the user to dismantle the training equipment in a short time and assemble it as quickly in a different configuration. This enables targeted training in the structure and configuration of SIMATIC®S7 stations. The PLC training racks can be used with S7-300 and S7-1500 assemblies. All connections are designed with 4-mm safety technology.

  • Structure and configuration of SIMATIC S7
  • PLC programming
  • Configuration and programming of networks and bus systems

  • AL-profile table-top rack
  • CPU S7-1512C-1 PN with display
  • Communication processor CP 1542-5 for FROFIBUS DP
  • Micro Memory Card 24 MB
  • Software SIMATIC STEP7
  • Ethernet cable
  • Operator Manual

  • Dimensions (LxHxW): 520x420x300 mm
  • AL-profile table-top rack
  • Power supply 24 VDC/8A
  • SIMATIC CPU S7-1512C-1 PN
  • 24 x 24 VDC digital inputs
  • 24 x 24 VDC/0,5A digital outputs
  • 4 x 0 - 10 V analogue outputs
  • 2 x 0 - 10 V analogue outputs
  • With integrated ProfiNet interface
  • Communication processor CP 1542-5 DP
  • Including Ethernet cable, Micro Memory Card 24 MB and Software SIMATIC STEP7
