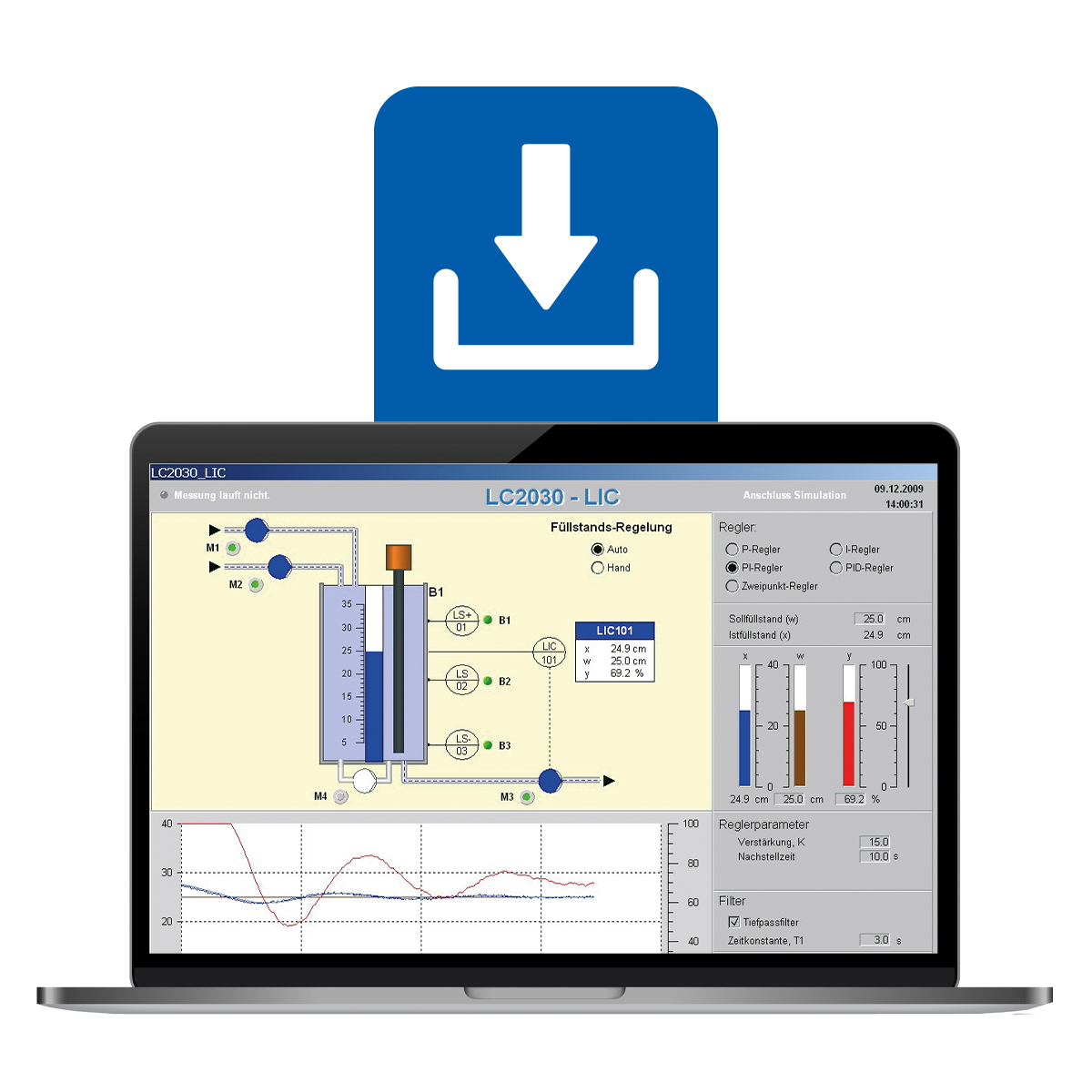

LC2030 Training is used to operate the LC2030 practical training system and also offers the option of operating the system in an integrated simulation of the practical training system. The system offers various controlled systems that can be selected individually, a controller can be freely selected and all controller parameters can be set. In addition, the LC2030 practical course offers the possibility to create sequence controls using GRAFCET or logic diagrams. The sequence controls can be set at different levels, from simple traffic light circuits to combined pump circuits with level detection and alarm signal.
Measurements can be taken for evaluation, and all measured values can be observed and stored online. The stored measurements can be evaluated with extensive analysis tools and exported as a text file. This allows all controls to be evaluated and optimised.
The language can be changed between German, English and Spanish.
Note: The software is provided as a download. For the communication of the licence data, we need the e-mail address as well as the name of the contact person in your institution. All licensed goods are excluded from return.
Licensed goods are excluded from return after download.
All control engineering experiments and all controls with GRAFCET or the logic diagrams can be carried out with the real system as well as with the integrated simulated system.
Teaching material with tasks and solutions for control engineering and control technology as well as an introduction to GRAFCET are supplied in digital form.
Control and regulation technology:
Control technology:
Freely adjustable controllers:
Selection of simulated or real plant:
