With the training board Illumination we offer you a training concept that teaches the basics of lighting technology, from simple incandescent lamps, halogen lamps and fluorescent lamps.
- The most important lamp types and circuits on one board
- 5 different lamps in comparison
- Absorbed energy, measured light output
- No special laboratory benches required, power outlet is sufficient (230 V)
- Also available in the handy box
- Expandable with the SPECIAL LAMP BOARD for experiments with special lamps
Note: The matching experimental instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
Built-in component:
- 1 distribution panel (safety sockets, 4 mm: L / N / PE)
- 1 socket E27
- 1 fluorescent lamp socket
- 1 choke
- 1 start detection
- 2 compensation capacitors
- 1 Electronic ballast with dimmer
Recommended measuring and test equipment:
- Multimeter (RMS)
- Phase angle meter
- Luxmeter

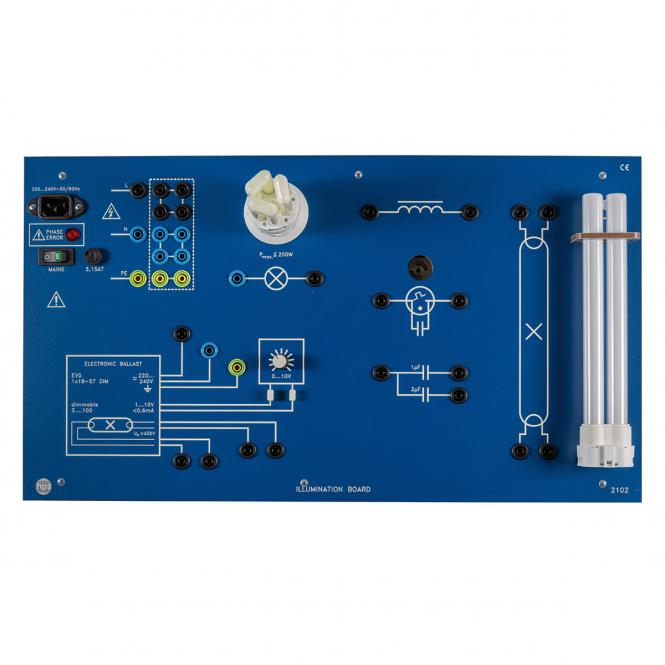

To carry out experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration. The board is also available in a box (see "Matching this").
- Electronics technician for industrial engineering
- Electronics technician for buildings and infrastructure systems
- Electronics technician for energy and building services engineering
- Electrical systems technician
- Industrial electrician
- Incandescent lamp
- Halogen lamp
- Fluorescent lamp with choke
- Fluorescent lamp with electronic ballast
- Fluorescent lamp with dimmer
- Compact fluorescent lamp (energy saving lamp)
- Mixed light lamp
- Mains connection (with earth contact):
- Mains voltage: 220 - 240 V AC
- Mains frequency: 50 - 60 Hz
- Power consumption: approx. 15 VA - 160 VA (depending on the lamp used)
- Dimensions:
- Learning board (W x H x D): 532 x 297 x 130 mm
- Learning board in box (W x H x D): 80 x 450 x 155 mm
- Weights:
- Learning board: approx. 2.8 kg
- Learning board in box: approx. 5.7 kg
Mechanical specifications:
The front panel of the training board is made of 5 mm thick laminate, color matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic cover protects the rear of the unit and its shape allows the unit to be placed at an ergonomically favourable angle on the table.
- Training board Illumination Board
- Cable set for training board
- Accessory kit for training board
